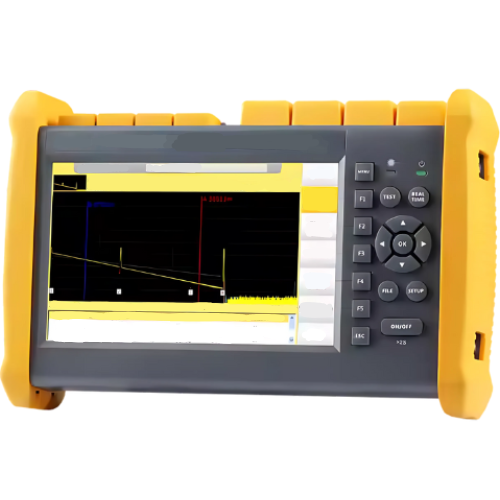

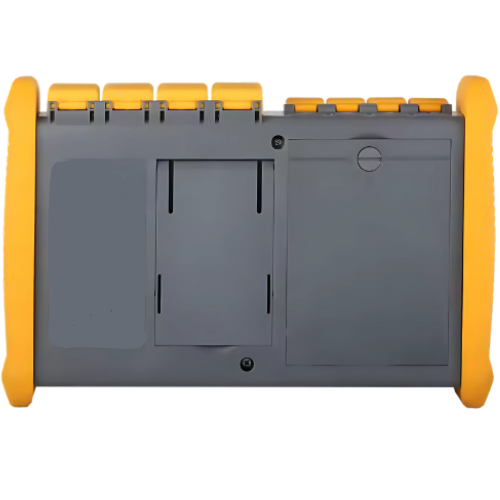

Fiber Optic Reflectometer with Customizable Wavelengths – Amuse Tech Solutions
Multifunctional OTDR with customizable wavelengths, dynamic range, fiber link map, splitter support, online light alarm, and remote control.
Description
Features
- Customizable wavelengths and range
- Fiber event mapping
- Remote control support
- Multi-language selection
Technical Specifications
| Wavelength | 1310/1550 nm |
| Dynamic Range | 43/41 dB |
| Dead Zone | 2.62 ft/9.84 ft (0.8 m/3 m) |
| Built-in VFL (Visual Fault Locater) | Yes |
| Built-in Laser Source | Yes |
| Optical Line Map (FLM) | Yes |
| Pulse Width | SM: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 us, 2 us, 5 us, 10 us, 20 us |
| MM: 850 nm: 3 ns, 5 ns, 10ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 us 1300 nm: 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 us, 2 us |
|
| Distance Range | SM: 328 ft, 1.64 ft, 1.24 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.71 mi, 74.56 mi, 99.42 mi, 149 mi (100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km, 240 km) |
| MM: 850 nm：1.64 ft, 1.24 mi, 3.10 mi, 6.21 mi, (500 m，2 km，5 km，10 km) 1300nm：1.64 ft, 1.24 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.71 mi (500 m，2 km，5 km，10 km，20 km，40 km，80 km) |
|
| Sampling Resolution | Min 0.16 ft (0.05 m) |
| Sampling Points | Max 128,000 |
| Linearity | ≤0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Distance Resolution | 0.032 ft (0.01 m) |
| Loss Resolution | 0.001 dB |
| Connector Type | SC ST |
| IOR | 1.2000 to 1.7000 |
| Distance Accuracy | ± 3.28 ft (1 m) +test distance × 3×10-5+sampling resolution) (excluding IOR uncertainty) |
| Memory Capacity | 80,000 Groups curve |
| VFL | 10 mW，CW/2Hz |
| Battery | Lithium Battery |
| OPM | Calibrated wavelength：850/1300/1310/1490/1550/1625/1650nm Test range：-60 to +5dBm |
| Interface | 1 x RJ-45, 3 x USB (Type A×2, Type B×1) |
| Dimension | 9.96 in x 6.61 in x 2.89 in (25.3 cm × 16.8 cm × 7.35 cm) |
| Weight | 1.5 kg (with battery) |
