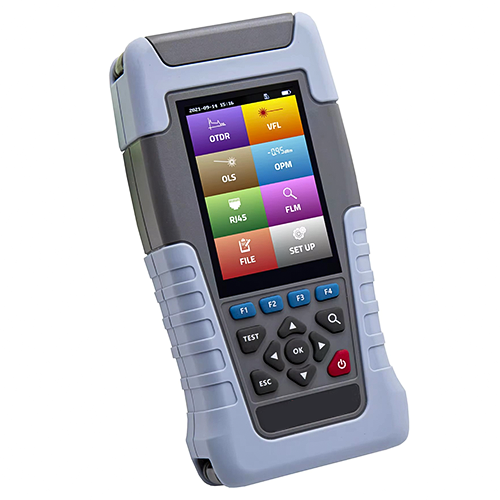

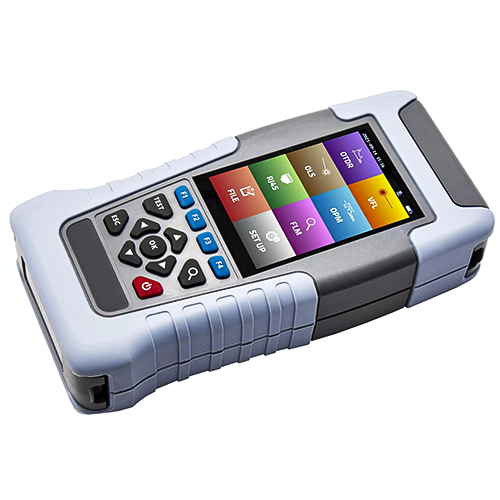

Fiber Optic Reflectometer Touch Screen with Dual Wavelength Support – Amuse Tech Solutions
High-performance fiber optic reflectometer designed for efficient network testing, providing reliable measurements for fiber optic installations and maintenance.
Description
Features
- Dual wavelength support
- Visual Fault Locator (VFL)
- Compact and portable design
- High dynamic range
- Touchscreen for easy navigation
- Reliable network performance testing
- Low dead-zone detection
- Built-in optical power meter
- Lightweight and durable construction
- SC/UPC and FC/UPC ports
Technical specifications:
| Use | FTTX |
| Warranty Time | 15 months |
| Network | Wireless LAN, Bluetooth, Wired LAN, GPRS, Wi-Fi, 4G, GSM, 3G |
| Touch Display | 3.5 inch |
| Loss | 0.1dB |
| Wavelength | 1310±20nm / 1550±20nm |
| Dynamic Range | 22/20dB |
| Test Range | 0.621371 miles (1km), 1.242742 miles (2km), 3.106855 miles (5km), 6.213711 miles (10km), 12.427423 miles (20km), 24.854846 miles (40km), 49.709693 miles (80km), 74.564540 miles (120km) |
| Pulse Width | 3ns/5ns/10ns/30ns/50ns/100ns/275ns/500ns/1us/2us/5us/10us/20us |
| Event Deadzone | 3.28084 feet (≤1m) |
| Attenuation Deadzone | 13.1237 feet (≤4m) |
| Refractive Index | 1.000 to 1.999 |
| Sampling Points | 64,000 |
| Sampling Accuracy | 0.05m (1km) |
| Distance Accuracy | ±(1m+test distance×3×10⁻⁵+sampling resolution) (excluding IOR uncertainty) |
| Loss Accuracy | 0.1dB |
| Linearity | 0.1dB |
| Reflectance Accuracy | ±2dB |
| Event Display | Fiber end, Reflection event, Splice loss |
| VFL | Working wavelength: 650±10nm, Output: 10mW, CW/1Hz/2Hz |
| Stable OLS | Wavelength: 1310±20nm/1550±20nm, Output >-13dBm, CW/270Hz/1kHz/2kHz |
| OPM | Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650nm, Test range: -70~+10dBm |
| RJ45 Line Sequence Test | TIA568-A and TIA568-B standard |
| Optical Interface | OTDR: FC/UPC (standard), optional SC/UPC, FC/APC, SC/APC, VFL: 2.5mm universal port, OLS: OTDR port, OPM: 2.5mm universal port |
| Electrical Interface | RJ45 port×2, RJ45 remote module, USB Type-C |
| Data Storage | Pluggable 8GB micro-SD card |
| Battery | 5000mAh lithium battery |
| Working Humidity | 0 to 85% (non-condensing) |
| Dimensions | 7.6in × 3.7in × 1.85in (19.29cm × 9.38cm × 4.7cm) |
| Weight | 1.26 lb (0.57kg) |
| Working Temperature | 14°F to 122°F (-10℃ to 50℃) |
