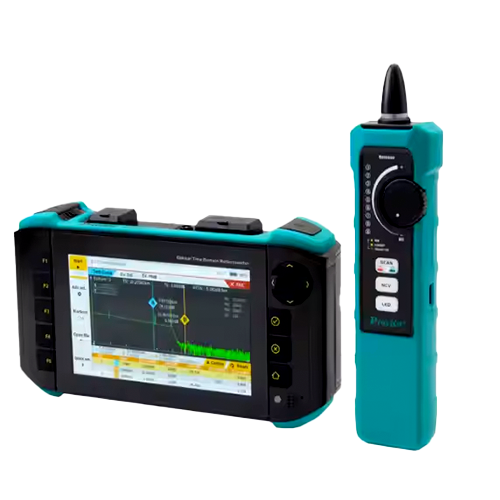

Fiber Optic Diagnostic OTDR with High Definition Display – Amuse Tech Solutions
Enhance fiber optic diagnostics with a multifunctional OTDR, featuring a high-definition display and long-lasting battery for efficiency.
Description
Features
- High-definition display
- Multifunctional performance
- Long-lasting battery
- Accurate diagnostics
Technical Specifications
| Testing Mode | Average, Real-time, Automatic |
| Attenuation Blind Zone | 8 ft (2.4 m) |
| Event Dead Zone | 6.6 ft (2 m) |
| Sampling Point | 16000 points |
| OPM Accuracy | ±0.2 dB to 0.3 dB |
| Display Screen | 5-inch color screen (800 x 480 resolution), capacitive touch screen |
| Interface Type | USB-A, Type-C, RJ45 Ethernet, TF interface |
| LED Lighting | Yes |
| Storage Capacity | 500 entries, expandable up to 32GB TF card, USB storage support |
| Energy Saving Mode | Automatic shutdown timer (can be canceled) |
| Battery Type | 3.7V/5000mAh lithium battery |
| Battery Life | Standby > 9 hrs, Measurement > 5 hrs |
| Charging Power | 5V/2A max support |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Dimension | 7.5 in x 3.9 in x 1.8 in (19 cm x 10 cm x 4.5 cm) |
| Weight | About 17.6 oz (500 g) |
