Fiber Optic Converter with Surround Sound – Amuse Tech Solutions
The Amuse Tech Solutions Fiber Optic Converter with Surround Sound extends uncompressed HD video up to 10 km over fiber cables, supporting 7.1 PCM surround sound and independent analog audio transmission. It’s ideal for high-performance video setups in industries like broadcasting, medical teaching, and exhibitions.
Description
Overview

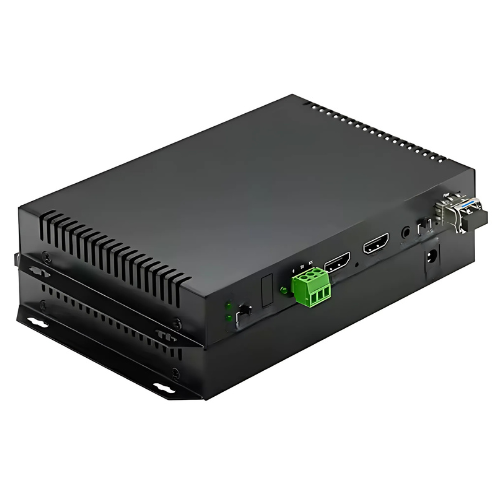

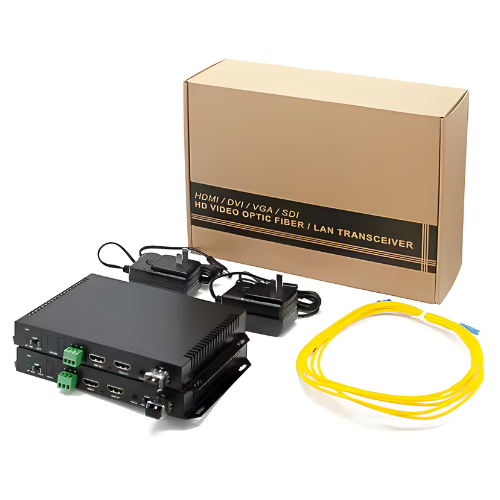

Amuse Tech Solutions fiber optic converter with surround sound is a fiber based extender designed to extend uncompressed HD Video signals up to 984.25 ft (300m)(Using Multimode Dual Core SFP) or 10km(Using Single model core SFP) over duplex fiber cables. OH1001 has excellent image processing and transmission capabilities, making signal transmission smoother and more stable. It is a reliable, high performance and efficient way to extend HDMI signals. It is widely used in exhibitions, subway, radio and television, video conferencing, medical teaching, educational recording and broadcasting, projection integrate ion and other industries with high video requirements.
Â
Features
- Uncompressed over 6.21 ml (10 km)
- Support PCM 7.1 surround sound and compressed audio
- Support independent forward analogue stereo audio transmission
Technical Specifications
| Interface | LC |
| Types | SFP Single mode |
| Wavelength | Single mode 1310 nm, multimode: 850 nm |
| Bandwidth | 10 Gbps |
| Attenuation | – 5 db |
| Pixel Bandwidth | 300MHz |
| Interface Bandwidth | 6.75 Gbps |
| Power | 12 V 1 A |
| Temperature | 32 °F to 104 °F (0 ℃ to 40 ℃) |
| Humidity | 20 % RH to 90 % RH |
| Size | 6.65 in × 4.37 in × 0.94 in (16.9 cm × 11.1 cm × 2.4 cm) |
| Weight | 15.87 oz (450 g) |
