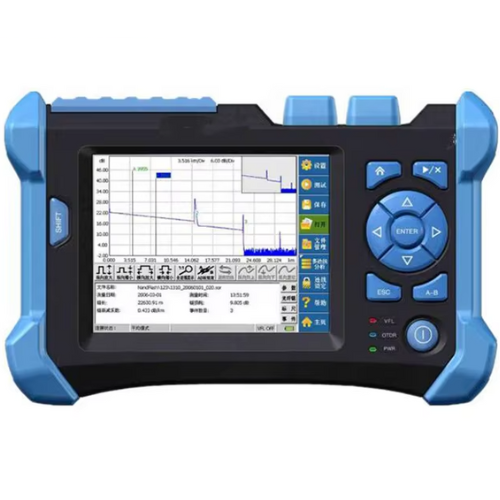

Fiber Optic Cable Tester Optical Time Domain Reflectometer – Amuse Tech Solutions
Discover an advanced tester designed applications high precision, and compact design, and outstanding resolution for efficient fiber network analysis.
Description
Features
- FTTX Application Compatibility
- 6″ LCD Touchscreen Display
- Precise Distance Measurement
- Low Event Dead Zone
- High Sampling Points (32K)
- Accurate Loss Resolution
- Compact and Portable Design
- Fast and Efficient Testing
Technical Specifications
| Use | FTTX |
| Selectable Range | SM: 0.808 mi(1.3 Km), 1.553 mi (2.5) Km, 3.107 mi (5 Km), 6.214 mi (10 Km), 12.427 mi (20 Km), 24.855 mi (40 Km), 49.709 mi (80 Km), 99.419 mi (160 Km), 149.13 mi (240Km) |
| MM: 0.808 mi (1.3 Km), 1.553 mi (2.5) Km, 3.107 mi (5 Km), 6.214 mi (10 Km), 12.427 mi (20 Km), 24.855 mi (40 Km) | |
| Pulse Width | SM: 5ns,10ns, 30ns, 100ns, 300ns,1µs, 2.5µs,10µs, 20µs |
| MM: 5ns, 10ns, 30ns, 1µs, 2.5µs | |
| Averaging Time | Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s |
| Emitter Type | LD |
| Connector | FC/PC (Interchangeable SC, ST and LC) |
| Distance Measure Accuracy |
± (1m+10-5×distance + sampling spacing) |
| Attenuation Detect Accuracy |
±0.05 dB/dB |
| Reflection Detect Accuracy |
±4dB |
| Event Dead Zone (m) | <= 1.8 |
| Attenuation Dead Zone (m) | <= 10 |
| Display | 5.6 in (14.22 cm) LCD Touch Screen |
| Linearity (dB/dB) | ±0.05 |
| Loss Threshold (dB) | 0.05 |
| Loss Resolution (dB) | 0.001 |
| Sampling Points | 32K |
| Product Dimensions | 591653.1 in (1502356.6 cm) |
| Distance Scope | 984.25 ft to 590,105.2 ft (0.3 km to 180 km) |
