A fiber media converter with multi-mode support is a device that facilitates the conversion of electrical signals from copper-based networks (e.g., Ethernet) to optical signals for transmission over multi-mode fiber optic cables.
Description
Overview

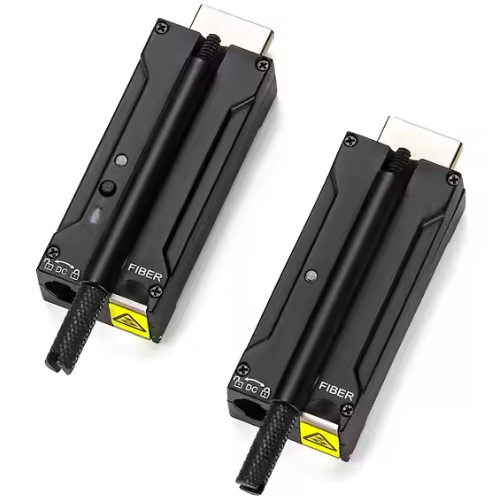

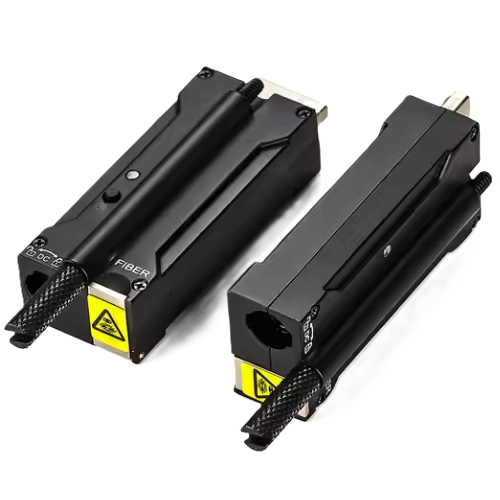

Amuse Tech Solutions fiber extender converter with multi mode absorbed the advantages of similar products at home and abroad, combined with the actual demand of the market, through one core optical fiber transmission of 4K or 2K to 60 Hz HDMI video signal, to achieve no delay, no compression, high quality signal extension of 6.21 ml (10 km).
The Mini 4K 60 Hz HDMI fiber converter meets the international standard HDCP protocol 1.4, automatically recognizes the EDID, has the power off EDID memory storage function.
The power consumption of the mini 4K 60Hz HDMI optical transceiver is less than 1.5 W, and the power supply is DC 3.5 x 1.35 mm, and the power socket is locked to prevent it from falling off during work; Optional USB cable power supply solves the pain points of power supply and makes it more flexible in use.
Mini 4K 60 Hz HDMI optical converter adopts the integrated video processing and photoelectric conversion design, high integration degree, small volume, its optical devices and core circuits and both imported components, performance stability, suitable for different working environments
Features
- Support downward compatibility of 4K, 2K to 60 Hz resolution
- Support Built in EDID mode and EDID manual learning mode, support button mode switching
- Support EDID memory storage function after power off
- Support unilateral power supply technology and can be powered from the signal source HDMI port
- Support dust prevention of fiber optic interfaces and have anti detachment design to prevent the loss of dust covers
- Support the power socket with lock to prevent the equipment from falling off during operation
- Support portable installation of rear long screws
- Support single fiber transmission of 6.21 ml (10 km), compatible with multi mode and single mode modes
- Support status light indication
- Plug and play, without debugging
Technical Specifications
| Way to Install | Direct plug in |
| Version | HDMI 2.0 |
| Bandwidth | 10.2 Gbps |
| Resolution | 4K x 2K x 60 Hz and downward compatibility |
| Color Space | 4K 60 Hz YUV 4:2:0, 4K 30 Hz RGB, YCbCr 4:4:4 or 4:2:2 or 4:2:0 |
| Pixel Clock | 340 MHz |
| Physical Interface | HDMI Male |
| Power Supply | 5 V |
| Consumption | < 1.5 W |
| Storage Temperature | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
| Humidity | 95 % RH |
| Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Size | 2.36 in × 0.86 in × 0.66 in (6.0 cm × 2.2 cm × 1.7 cm) |
| Weight | 1.82 oz (51.7 g) |
