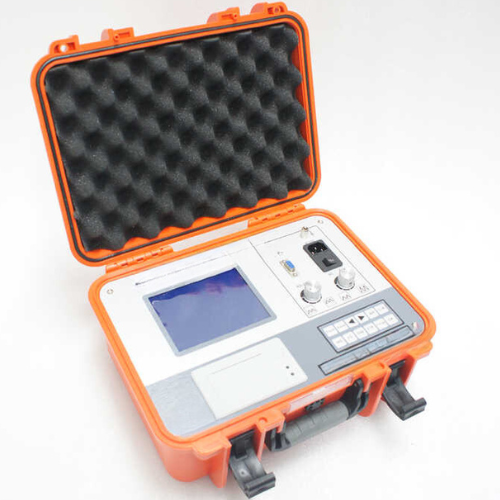

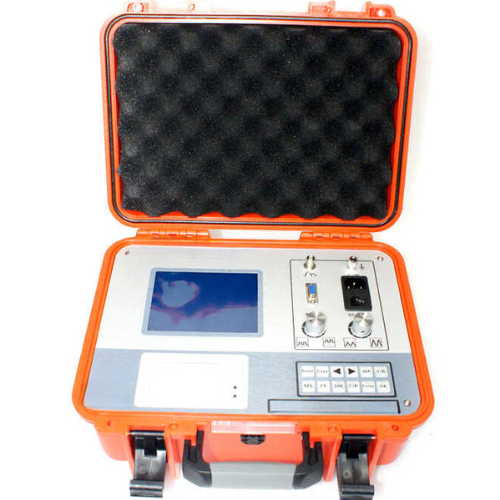

Fault Locator Cable with Industrial LCD Display Panel – Amuse Tech Solutions
Cable continuity tester with pulse sampling, distance and resistance measurement, industrial-grade display, and robust environmental adaptability.
Description
Features
- Industrial LCD Display Panel
- Multi-Functional Measurement Capabilities
- High Sampling Frequency Options
- Precise Distance Measurements
- Durable Built-In DC Power
Technical Specifications
| Test Mode | Low-pressure Pulse, Multiple Pulse, Voltage Sampling, etc. |
| Sampling Frequency | 98.4 ft (30 M), 196.8 ft (60 M), 393.7 ft (120 M) |
| Test Distance | Up to 102.5 mi (165 km) |
| Test Pulse | 0.2 μs to 9.9 μs |
| Deviation | No more than ±0.25% |
| Display | Industrial-grade 5-inch LCD display with keyboard operation |
| Functionality | Distance, Speed, and Resistance Measurement |
| Testing Method | Flashover Sampling, Low-impulse Method |
| Measurement Range | Smax: 37.3 miles; Smin: 49.2 feet |
| Pre-Locating Accuracy | Absolute: ±32.8 feet (10 m); Relative: ±1% |
| Power Supply | Built-in DC 2.6 V / 10.4 Ah; external AC 220 V 50 Hz |
| Monitor | Visual angle >160° |
| Operating Temperature | -13 °F to 149 °F (-25 °C to 65 °C) |
| Dimension | 16.9 in x 14.2 in x 9.1 in (43 cm x 36 cm x 23 cm) |
| Weight | 17.6 lbs (8 kg) |
