Ethernet Testing with Fast Charging Support – Amuse Tech Solutions

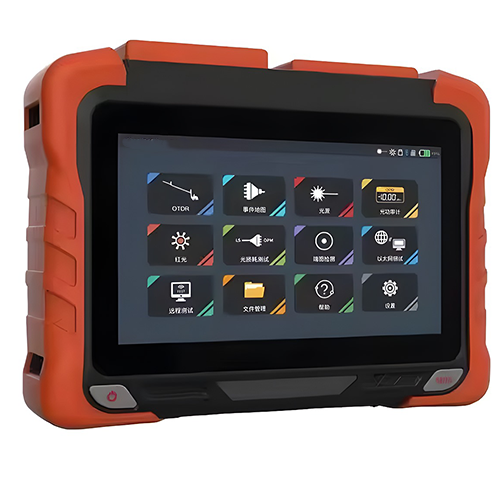

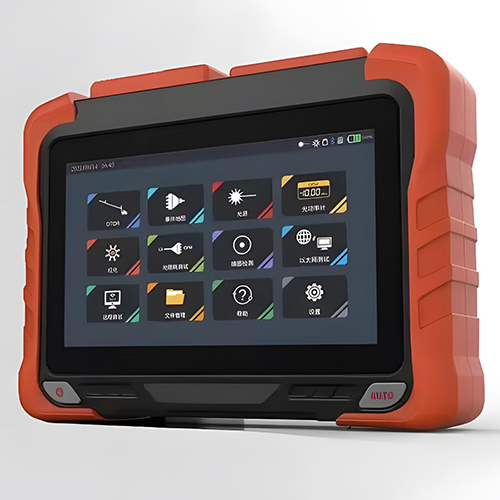

Advanced OTDR with touch screen, automatic testing, Ethernet test support, and app control for fiber length, loss, and connection quality
Description
Features
- PON network testing
- Fast charging support
- Maximum dynamic range
- Mobile app operation
Technical Specifications
| Connector | FC/UPC (interchangeable SC, ST) |
| Data Interface | USB-A Type-C port, RJ45 LAN 10/100Mbit/s |
| Laser Type (LS) | FP-LD |
| Laser Wavelength (LS) | Consistent with OTDR output wavelength; ≥5 dBm (SM fiber) |
| Wavelength | 1310 nm / 1550 nm (SM), 1490 nm / 1550 nm (MM) |
| Max Dynamic Range | 32/35/33/36 dB (SM), 30/35/37/35/35/32/30/37/35/35 dB (MM) |
| Event Blind Zone | 2.62 ft (0.8 m) (SM), 0.5m (MM) |
| AT Blind Zone | 13.12 ft (4 m) (SM), 11.48 ft (3.5 m) (MM) |
| Test Range | 328 ft/ 1.64 ft/ 0.77 mi/ 1.55 mi/ 6.21 mi/ 24.85 mi/ 49.71 mi/ 77.67 mi/ 161 mi (100 m/500 m/1.25 km/2.5 km/5 km/10 km/40 km/80 km/125 km/260 km) (SM), 19.68 ft (6 m) (MM) |
| Pulse Width | 3 ns/5 ns/10 ns/20 ns/50 ns/80 ns/100 ns/200 ns/500 ns/800 ns (SM), 11.48 ft (3.5 m) (MM) |
| Range Accuracy | ± 2.46 ft (0.75 m) ± 0.02% x Test distance |
| Loss Accuracy | ±0.03 dB |
| Sample Points | ≥256 k |
| Reflection Accuracy | ±2 dB |
| Loss Threshold | 0.01 dB |
| Data Storage | Internal storage: 2 GB, 200,000 curves External storage: 64 GB |
| Wavelength Range (OPM) | 800 nm to 1700 nm (Universal FC/SC/ST) |
| Test Scope (OPM) | -50 dBm ± 26 dBm; -70 dBm ± 6 dBm |
| Calibration Wavelength (OPM) | 850 nm/980 nm/1300 nm/1310 nm/1490 nm/1550 nm/1625 nm |
| Power Mode (LS) | CW, ±0.5 dB/15 min (Test after 15 minutes of preheating) |
| Size | 8.46 in x 6.29 in x 1.96 in (21.5 cm x 16 cm x 5 cm) |
| Weight | 2.64 lb. (1.2 kg) |
