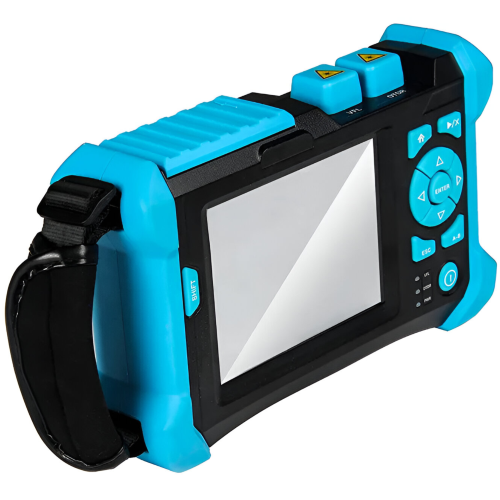

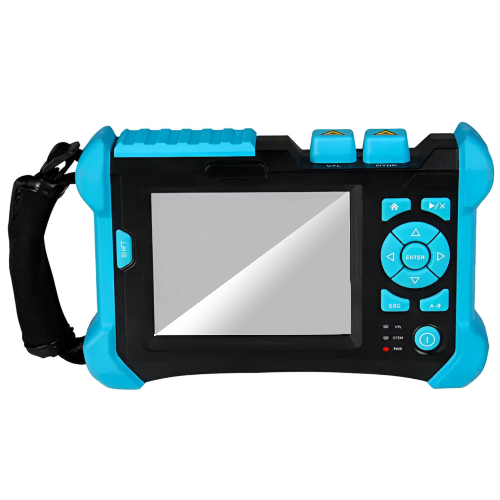

Ethernet Tester with Optical VFL – Amuse Tech Solutions
Discover the Ethernet tester with optical VFL, 60 km test range, precise loss measurement, and user-defined duration for comprehensive network analysis.
Description
Features
- Long battery life
- Intelligent testing
- Powerful functions
- Memory card + SD
- Large storage capacity
- FTTx testing support
- Multiple wavelengths
 Technical Specifications
| Wavelength (Nm) | 850/1300 |
| Dynamic Range (DB) | 23/21 |
| Optical Interface | FC/UPC (PC selectable) |
| Visible Failure Orientation (VFL) | Wavelength 650nm |
| Data Interface | USB interface, SD card interface |
| Test Range | 60 km |
| Linearity (DB) | ±0.05 |
| Loss Threshold (DB) | 0.05 |
| Loss Resolution Ratio (DB) | 0.01 |
| Sampling Resolution Ratio (M) | 0.125 to 8 |
| Sampling Point | 32 K |
| Distance Uncertainty (M) | ±(1 m + 5×10×Distance + sampling interval) |
| Distance Scope (Km) | 0.3 to 180 |
| Typical Real-Time Refreshing Duration (S) | 0.2 |
| Memory Capacity of Trace | SD card (4G) ≥1000 pcs |
| Duration of Measurement | User-defined: 5s, 10s, 15s, 30s, 1min, 2min, 3min |
| Dimension | 5.90 in x 9.25 in x 2.59 in (15 x 23.5 x 6.6 cm) |
| Weight | 3.30 lb (1.5 kg) |
