Ethernet Tester with 60 km Range & Built-in Visual Fault Locator (VFL) – Amuse Tech Solutions

Description

Overview

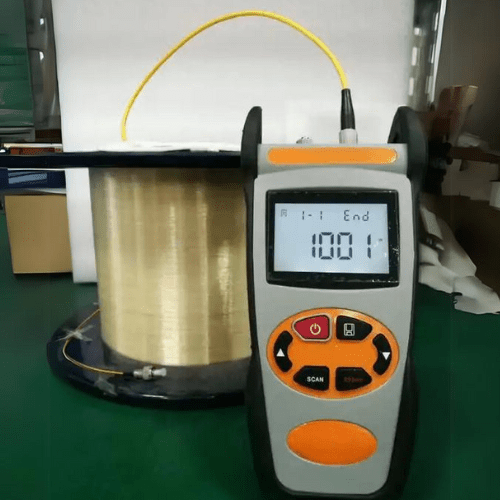

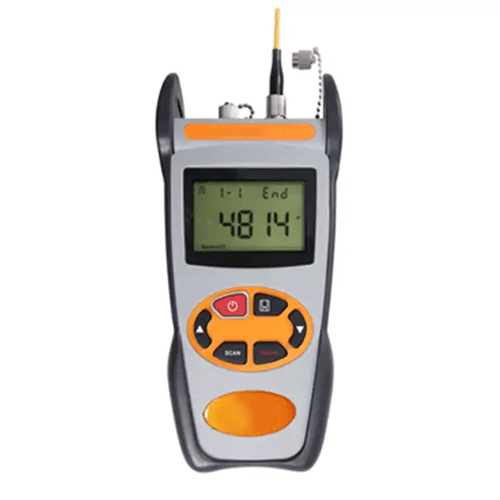

Amuse Tech Solutions ethernet testers are the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates powerful analysis software, which enables the HS5001 fiber ranger to detect fiber faults’ location more accurately and easier.



Features

• Portable, rugged, lightweight; Easy to use;
• More accurate testing results and better repeatability
• Up to 8 fiber faults can be detected in each measurement
• Automatic Pulse Width Control design to ensure a convenient operation
• Easy to identify the faults’ location
• Liver fiber detection
• OTDR connector for the fiber ranger port
• Built-in visual fault locator (VFL), conveniently to find the faults in dead zone
• Long battery life, up to 5000 measurements operation
• Data storage function, up to 1000 test records
• USB communication port for saved testing records download



Technical Specifications

Operating Wavelength		1550 nm (1310 nm Optional)
Fiber Type		0.00035 in or 0.0049 in (9 um or 125 um)SM Fiber
Optical Connector Type		FC or PC
Detector Type		InGaAs
Peak Power of laser		≥60 mW
Max. Displaying Distance	Reflection Event	37.28 mi (60 km) (≥1 dB)
	Non-reflection Event	12.42 mi (20 km) (≥2.5 dB)
Measurement Unit		M
Reflection Event Dead Zone		49.21 ft (15 m)
Distance Accuracy (Reflection Event)		± (6.56 ft (2 m) +2 x 10(-4) x Distance)
Wavelength of VFL Option		650 nm
Output Power of VFL Option		>=1 mW
Date storage capacity		1000
Communication Port		USB
Power Supply		Alkaline Battery (3pcs AA 4.5V Batteries)
Battery Operating Time		≥5000 measurements
Working Temperature		23 °F to 104 °F (-5 °C to 40 °C)
Storage Temperature		14 °F to 140 °F (-10 °C to 60 °C)
Humidity		0% to 85% (non-condensation)
Dimension		7.87 in x 3.54 in x 1.96 in (200 mm x 90 mm x 50 mm)
Weight		0.7 lb (320 g)
