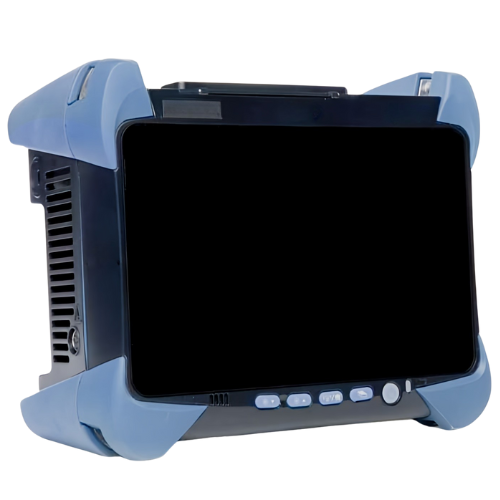

Ethernet Tester with 24V AC DC Adapter – Amuse Tech Solutions
Discover the Ethernet tester with adapter, quad-core processor, and connectivity options like USB, LAN, for enhanced performance and reliability.
Description
Technical Specifications
| Power Supply | AC/DC adapter, input: 100 to 240V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A |
| Battery | Rechargeable Li-ion smart battery |
| Storage | 128 GB internal memory (flash) |
| Interfaces | RJ45 LAN 10/100/1000 Mbit/s, Two USB 2.0 ports, One USB 3.0 port, Micro SD card slot, 3.5 mm headset/microphone port |
| Display | Multitouch, wide-screen, 1280 x 800 TFT, 8 inch |
| Processing | Quad-core processor / 8 GB RAM / Windows 10 |
| Relative Humidity | 0 % to 95 %, non-condensing |
| Tx Bit Rate | 10 Mbit/s, 125 Mbit/s, 1 Gbit/s |
| Tx Accuracy (Uncertainty) | ±4.6 ppm |
| Rx Bit Rate | 10 Mbit/s, 125 Mbit/s, 1 Gbit/s |
| Rx Measurement Accuracy | ±4.6 ppm |
| Duplex Mode | Half and Full Duplex |
| Jitter Compliance | IEEE 802.3 |
| Connector | RJ45 |
| Maximum Reach (m) | 100 |
| Temperature (Operation) | 32 °F to 104 °F (0 °C to 40 °C) |
| Temperature (Storage) | -40 °F to 158 °F (-40 °C to 70 °C) |
| Dimension | 8.26 in x 10 in x 3.77 in (21 cm x 25.4 cm x 9.6 cm) |
| Weight | 5.7 lb (2.6 kg) |
