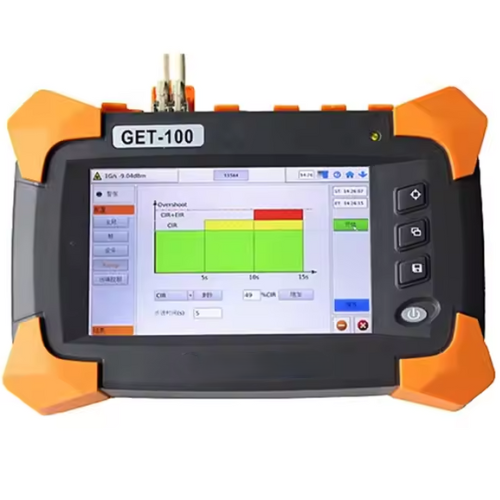

Ethernet Tester Cable Ethernet with Durable and Portable Tool – Amuse Tech Solutions
Portable Ethernet tester for installation, monitoring, and performance testing, featuring packet capture, fault analysis, and network diagnostics.
Description
Features
- 5-inch Touch Screen
- L1/L2/L3 BER Testing
- IEEE 802.3 Compatible
- USB and RJ-45 Interfaces
- Compact and Lightweight Design
- 4-Hour Battery Life
- Supports RFC2544 Standards
- Durable and Portable Tool
Technical Specifications
| Screen | 5-inch color LCD touch screen (800×480 resolution) |
| Function | L1/L2/L3 BER Test |
| Testing Ports | Dual-RJ45 (10/100/1000 BASE-T), Dual-SFP (1000BASE-SX/LX/ZX) |
| Standard | IEEE 802.3, RFC1242, RFC2544, Y.1564 |
| Interface | RJ-45/USB |
| Connector | RJ-45/USB |
| LED Indicators | POWER, PORT1 LINK/ACT, PORT2 LINK/ACT, ALARM |
| Power Supply | Lithium battery / AC adapter, 4 hours continuous operation |
| Relative Humidity | 0 % to 95% (non-condensing) |
| Operating Temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) |
| Dimension | 9.17 in × 4.33 in × 2.52 in (23.3 cm × 11 cm × 6.4 cm) |
| Weight | 28.22 oz (800 g) |
