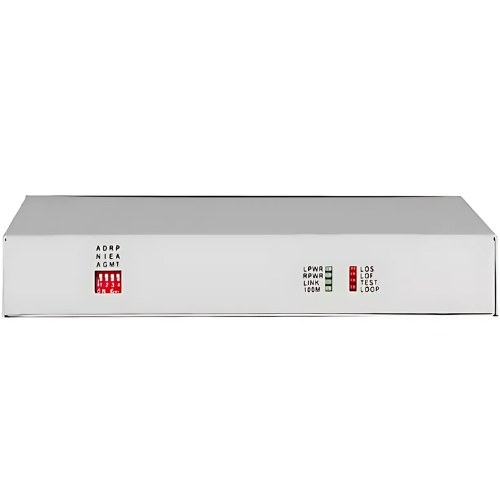

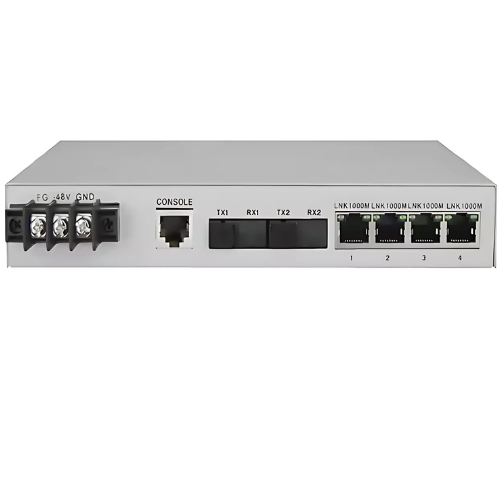

Ethernet Switch with Auto Reset – Amuse Tech Solutions
Discover the Amuse Tech Solutions Ethernet Switch with Auto Reset, featuring versatile power options, fiber support, IEEE compatibility, and robust performance for industrial environments.
Description
Technical Specifications
| Power Supply | AC 180 V to 260 V; DC – 48 V; DC and 24 V |
| Connector | FC / SC |
| Colour | Gray |
| Working Humidity | 5% to 95 % (no condensation) |
| Warranty | 3 yr |
| Power Consumption | ≤ 10 W |
| Ethernet Interface (10 / 100 M) | |
| Â Interface Rate | 10 / 100 M half / full duplex auto-negotiation |
| Interface Standard | Compatible with IEEE 802.3 IEEE 802.1 Q (VLAN) |
| Â MAC Address Capability | 4096 |
| Connector | RJ 45 support Auto-MDIX |
| Multi-Mode Fiber | |
| Transmission Distance | 1.24 mi (2 Km), attenuation (3 dbm / km) |
| Wavelength | 850 nm |
| Transmitting power | -12 dBm (Min) to 9 dBm (Max) |
| Receiver sensitivity | -28 dBm (Min) |
| Link Budget | 16 dBm |
| Single-mode Fiber | |
| Transmission distance | 12.43 mi (20 Km), attenuation (0.35 dbm / km) (provide customized products for longer distance) |
| Wavelength | 1310 nm |
| Transmitting Power | -9 dBm (Min) to –5 dBm (Max) |
| Receiver Sensitivity | -27 dBm (Min) |
| Link Budget | 18 dBm |
| Working Environment | |
| Working Temperature | 50°F to 158°F (- 10 °C to 70 °C) / -40°F to 185°F (- 40 ℃ to + 85 ℃) (industrial type) |
| Working Humidity | 0 % to 95 % (no condensation) |
| Storage Temperature | -40°F to 185°F (-40 °C to 85 °C) |
| MTBF |  ＞100,000 hrs |
| Working Temperature | 14°F to 122°F (-10 °C to 50 °C) |
| Size | 8.50 in x 5.51 in x 1.22 in (21.6 cm x 14 cm x 3.1 cm) (W x D x H) |
| Weight | 3.97 oz (1800 g) |
