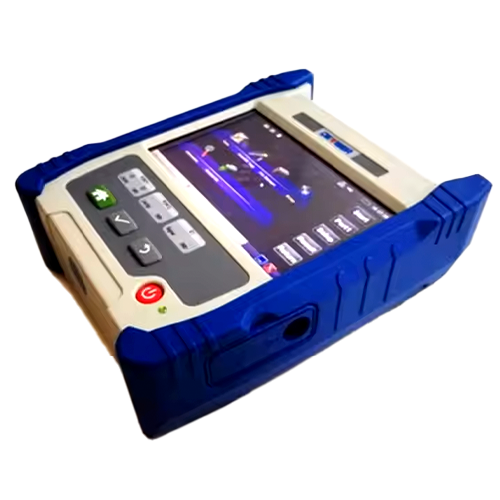

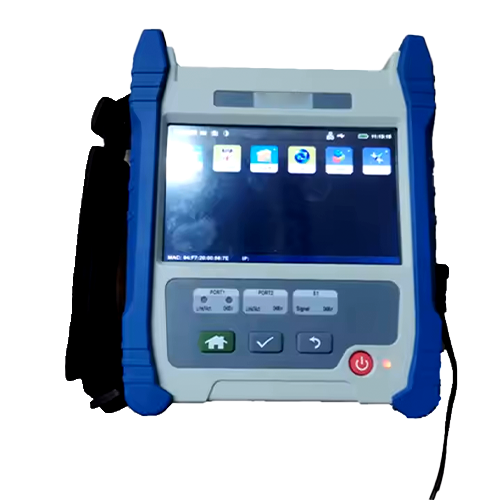

Ethernet Service Tester with SFP Ports Touchscreen – Amuse Tech Solutions
Discover this Ethernet tester with Gigabit transceiver, ideal for fiber optic testing, supporting 850nm, 1310nm, and 1550nm wavelengths.
Description
Features
- Ethernet service testing
- Quick 10M-1G fault checks
- 5″ color LCD touchscreen
- Dual/single SFP ports
- Simultaneous measurements
- Integrated field tools
Technical Specifications
| Wavelength | 850nm, 1310nm, 1550nm |
| Tx Level | -9 to -3dBm (850nm, 1310nm), 0 to -5dBm (1550nm) |
| Rx Sensitivity | -20dBm (850nm), -22dBm (1310nm, 1550nm) |
| Transmission Distance | 550m (850nm), 10km (1310nm), 80km (1550nm) |
| Transmission Bit Rate | 1.25 Gbit/s |
| Rx Bit Rate | 1.25 Gbit/s |
| Working Wavelength Range | 830–860nm (850nm), 1270–1360nm (1310nm), 1540–1570nm (1550nm) |
| Frequency | ±4.6ppm |
| Optical Power | ±2dB |
| Jitter Compliance | IEEE802.3 |
| Ethernet Type | IEEE802.3 |
| Connecter | LC |
| Transceiver | SFP |
| TX Bit Rate | 10Mbit/s |
| RX Bit Rate | 10Mbit/s |
| TX Test Accuracy | ±4.6ppm |
| RX Test Accuracy | ±4.6ppm |
| Duplex Mode | Full duplex |
| Jitter Compliance | IEEEB802.3 |
| Connector | RJ-45 |
| Line Rate and Code | 2.048 Mbps, HDB3 and AMI |
| Compliance | ITU-T G.703 |
| Display | 5″800×480 color LCD touchscreen |
| Relative Humidity | 0% to 95%(non-condensing) |
| External Port | USB,LAN Rj-45 |
| Working Time | -7 hours[TC601+]:-5 hours [TC602]=3.5hours[TC602RE] |
| Charging Time | 5 hours from fully discharged to fully charged |
| Max Distance | 328.084ft (100m) |
| Dimension | 7.0 in x 5.7 in x 2.2 in (17.9cm x 14.5cm x 5.6 cm) |
| Working Temperature | 14 °F to 122 °F (-10°C to 50°C) |
| Storage Temperature | −4∘F to (-20℃ to -70℃) |
| Weight | 1.8 lb (0.8 kg) |
