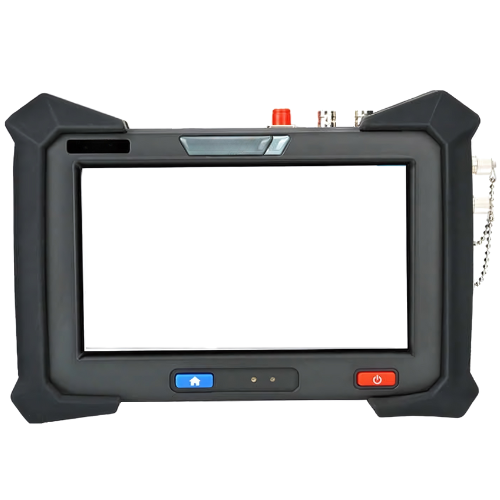

Ethernet OTDR Network Tester with VFL E1 Support – Amuse Tech Solutions
Discover the Ethernet & OTDR Network Tester, with VFL support, and E1 testing. Perfect for network administrators seeking fast, reliable diagnostics.
Description
Features
- Dual-port IPRAN/OTN IPRAN and Ethernet test functions in oneÂ
- Dual-port independent configuration, simultaneous testingÂ
- DATACOM data interface: 1 V.35/V.24 data test functionÂ
- 75-ohm unbalanced E1 interface: E1 link, compliant with G.703 (E1)Â
- 120-ohm balanced E1 interface: E1 link, compliant with G.703 (E1)Â
- Optical power interface: independent optical power meter interfaceÂ
- VFL interface: independent VFL interfaceÂ
- Fiber fault detection test, OTDR interface: independent OTDR interfaceÂ
- Management network port: for remote control, data export
Technical Specifications
| Testing Capabilities | E1, PRI, V.35/V.24, OTDR, 10/100/1000M Ethernet |
| Ethernet Testing | Supports 10/100/1000M Ethernet testing |
| Additional Tests | OTDR, VFL, Network Analysis |
| User Type | Ideal for network administrators |
| Testing Accuracy | High-speed network testing with quick diagnosis |
| All-in-One Functionality | Multiple test functions in a single device |
| Interface | USB 2.0 port; RJ-45 LAN |
| Network | Ethernet |
| Feature | 7-inch TFT color touch screen with 960×480 resolution |
| Interface | V.35 & V.24, DCE/DTE, synchronous access mode |
| Error Code Test | Code types: 2E7, 2E9, 2E11, 2E15, 2E21, all 1, 0/1 alternating |
| BERT Compliance | G.821 analysis |
| Protocol Support | IP protocol and PING test |
| WAN Port Protocols | PPP, HDLC, Frame Relay |
| WAN Port Functionality | Establish connection with local/remote router, auto-detect opposite router |
| PING Test | Fast traffic PING test, loopback fast PING test |
| Frame Relay Test | UNI DTE/DCE frame relay monitoring, simulated user end (CPE) test |
| Loop Detection | Detects remote circuit loop and displays intuitively |
| Measurement Wavelength | 1550 nm ±10 nm |
| Laser Type | Pulsed FP laser |
| Dynamic Range | 20 dB |
| Pulse Width | 10NS, 25NS, 50NS, 100NS, 250NS, 500NS, 1µS, 2.5µS, 5µS, 10µS |
| Event Blind Zone | < 13.12 ft (< 4 M) |
| Attenuation Blind Zone | < 32.81 ft (< 10 M) |
| Optical Power Meter Calibration Wavelength | 850/980/1300/1310/1490/1550/1650 nm |
| Probe Type | INGAAS |
| Power Measurement Range | -70 dB m to +6 dB m |
| Uncertainty | ±0.25 dB |
| Linearity | 0.03 dB |
| Display Resolution | 0.01 dB |
| OTDR Module Measurement Wavelength | 1550 nm ±10 nm |
| Laser Type (OTDR) | Pulsed FP laser |
| VFL Connector Type | FC/SC/ST |
| VFL Working Wavelength | 650 nm |
| VFL Fiber Output Power | >10 mW |
| VFL Frequency Flashing | Always on/2Hz |
| Management Ethernet Interface | Yes, used to export test results and display LAN topology diagram |
| Management Features | Supports multiple VLANs, USB interface, USB flash drive, WIFI, and electronic signature |
| Built-in Storage | 8GB TF card |
