Ethernet LAN Tester with Multi-Connector Support & 100 Result Storage – Amuse Tech Solutions
This Ethernet LAN tester supports CAT3, CAT5e, and CAT6, stores 100 results, and features multi-connectors with 3.5-hour battery life for efficient testing.
Description
Overview
Amuse Tech Solutions ethernet LAN tester is designed for ethernet systems, this product measures the speed and performance on CAT3, CAT5e and CAT6 cable according to ANSI or TIA or EIA-568-B and ISO or IEC 11801 to ensure the cable qualification.
Â
Features

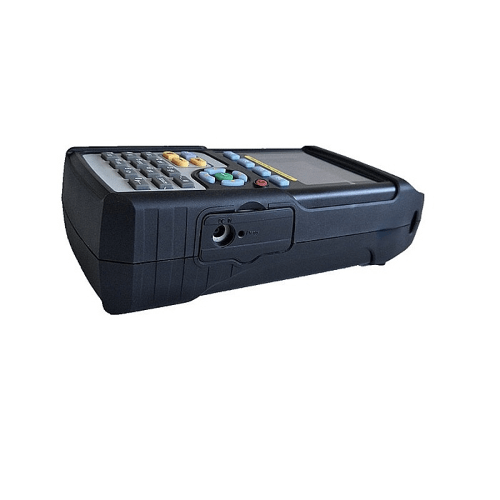

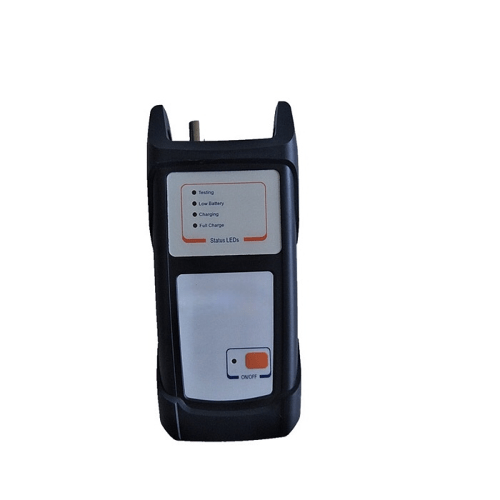

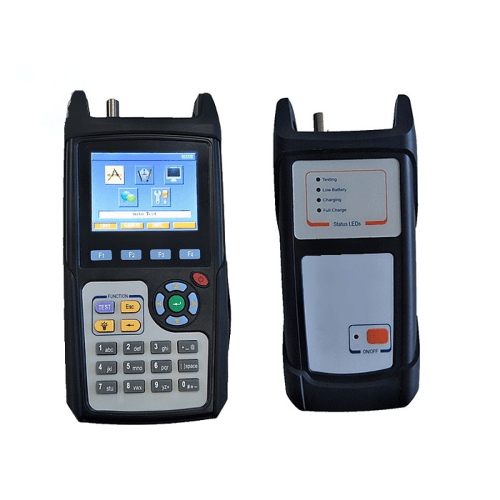

- Contains main unit and a remote unit
- Multi connector
- One generator
- Two additional functions
- Store at least 100 results
- Toolbox software to analyze the results on PC
Â
Technical Specifications
| Testing Interface | RJ45, RJ11, F, Banana jacks |
| Other Interface | USB |
| Power Supply | Main unit: 7.4 V or 2.4 AH Lithium battery;Remote unit: 7.4 V or 1.1 AH Lithium battery |
| Working Time | 3.5 hrs |
| Charging Time | 5 hrs |
| Dimension | Main unit: 8.74 in x 4.25 in x 2.24 in (222 mm x 108 mm x 57 mm);Remote unit: 7.24 in x 3.26 in x 1.73 in (184 mm x 83 mm x 44 mm) |
| Weight | Main unit: 1.76 lb (800 g)Remote unit: 0.88 lb (400 g) |
