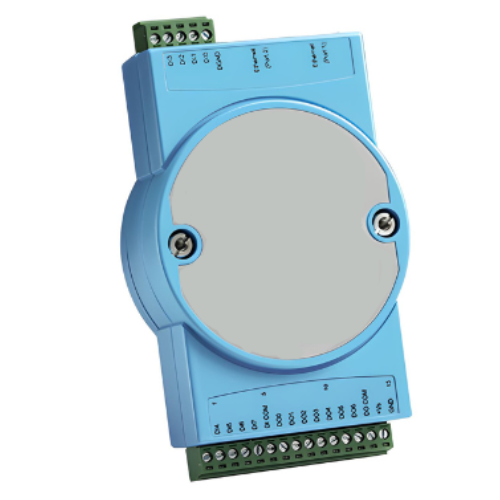

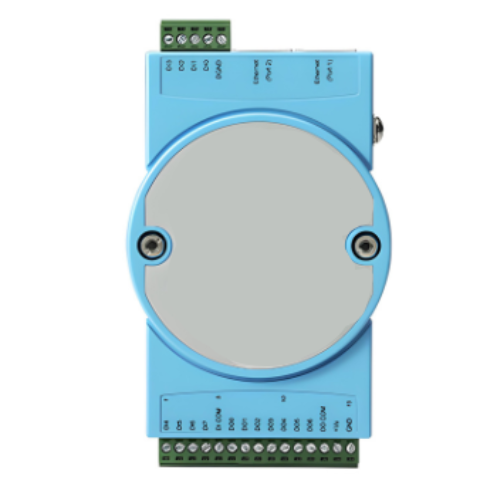

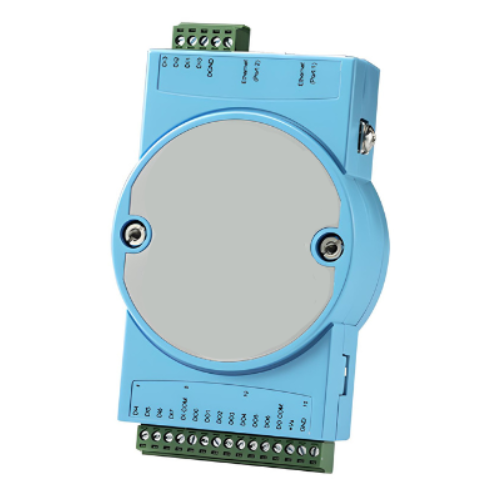

Ethernet I/O Module with 8 Digital Inputs/7 Outputs, 2500V Isolation – Amuse Tech Solutions
Ethernet I/O module with 8 digital inputs, 7 outputs, and 2500V isolation. Features include a wide temperature range and flexible voltage options.
Description
Features
- Ethernet or IP protocol
- 8 channel digital input and 7 channels digital output (settling)
- Normal Output Current: 0.1A (per channel)
- 2 x RJ -45 LAN (daisy chain)
Technical Specifications
| Interface | Ethernet |
| Isolation Voltage | 2,500 VDC |
| Connectors | 2 x RJ45, 1 x 15 pin plug-in screw terminal, 1 x 5 pin plug-in screw terminal |
| Protocol | Ethernet or IP |
| Input Voltage | Dry Contact Logic level 0 open Logic level 1 close to GND Wet Contact Logic level 1 is 10 to 30 VDC and -10 to -30 VDC Logic level 0 is -3 to 3 VDC |
| Input Voltage | 10 to 30 VDC |
| Output Type | Sink |
| Output Voltage | 8 to 35 VDC |
| Sink Current | 328.08 ft (100 m) max. per channel |
| LAN | 10 per 100 Base-T(X) |
| Power Input | 10 to 30 VDC |
| Operating Humidity | 20 to 95% RH (non-condensing) |
| Storage Humidity | 0 to 95% RH (non-condensing) |
| Operating Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Storage Temperature | -4 °F to 176 °F (-20 °C to 80 °C) |
