Description
Features

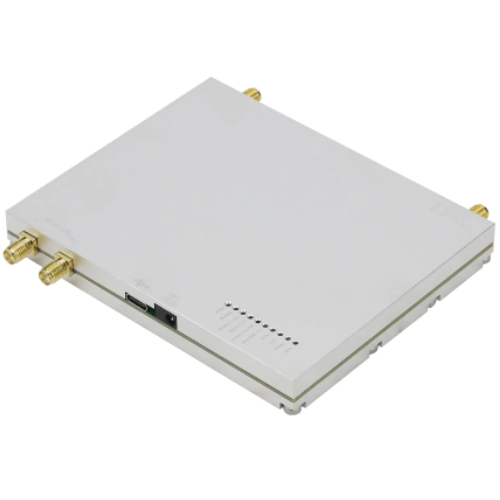

- Dual-port VNA up to 6GHz
- USB-based connection design
- Fast 10,000 scans/sec
- Measures complete S-parameters
- Ultra-low noise power supply
- Precision CNC aluminum case
- High accuracy with 16-bit ADC
 Technical Specifications
| Impedance | 50Ω |
| Test Port Connector | SMA, female |
| Number of Test Ports | 2 |
| Frequency Range | 100 kHz to 6 GHz |
| Frequency Accuracy | <2 ppm |
| Number of Measurement Points | 2 to 4501 |
| Speed (2-Port – 4000 Pts) | <500 ms (IFBW=50 kHz) |
| Measurement Bandwidths | 10 Hz to 50 kHz |
| Dynamic Range (IFBW 10Hz) | >95 dB to 3 GHz; >50 dB to 6 GHz |
| Measurement Parameters | S11, S21, S12, S22 |
| Reflection Directivity | >40 dB (after calibration) |
| Output Power | -40 dBm to 0 dBm |
| Power Supply | DC 5V, 1.5A (USB powered or 3.5mm connector) |
| Power Consumption | Approx. 7 W |
| Interface | USB Type-C |
| Supported Operating Systems | Windows, Linux, MacOS (64-bit software only) |
| External Reference Input | SMA female; 10 MHz |
| External Reference Output | SMA female; 10 MHz or 100 MHz |
