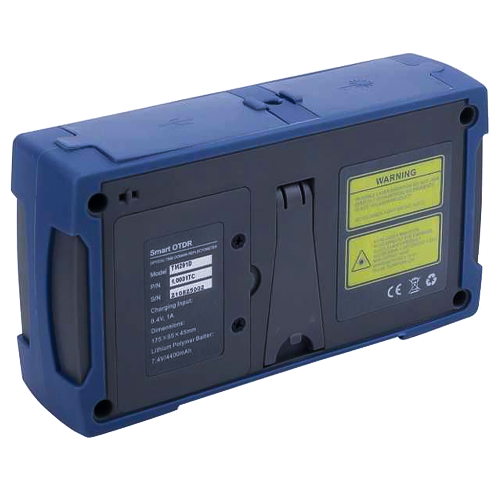

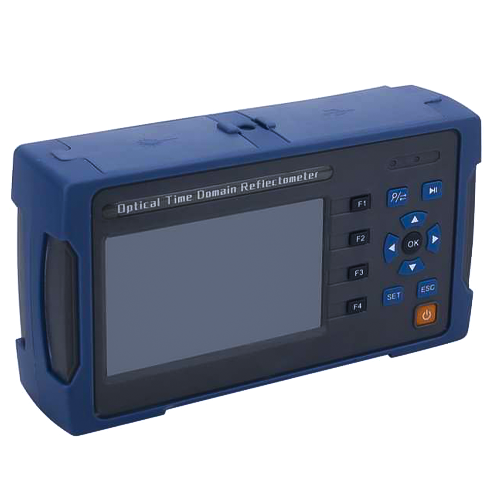

Dual Wavelength Fiber Optic Tester with Touchscreen Interface – Amuse Tech Solutions
Dual-wavelength fiber optic tester for accurate network analysis, ensuring reliable performance and easy operation for professional diagnostics
Description
Features
- Measurement Distance Capability
- Touchscreen Interface
- Multi-Function Testing
- Quick Boot Feature
Technical Specifications
| Storage of Records | 200 groups |
| Battery | 7.4 V / 4400 mAh Lithium-ion battery, >5000 tests |
| Distance Accuracy (Reflection) | About ± (3.28 ft + 0.0002 × distance) |
| LCD Display | 3.97 in, 800 × 480 pixels, IPS screen |
| Measurement Distance | 0 mi to 37.28 mi (0 to 60 km) |
| Dead Zone of Reflection | 6.56 ft (2 m) |
| Dead Zone of Attenuation Event | 39.37 ft (12 m) |
| Light Source Output Power | ≥-5 dBm |
| Optic Loss Range | 0 dB to 30 dB |
| Operating Temperature | 23°F to 122°F (-5°C to 50°C) |
| Storage Temperature | 14°F to 140°F (-10°C to 60°C) |
| Dimensions | 7.5 in × 3.3 in × 2 in (19 cm × 8.4 cm × 5.2 cm) |
| Weight | 0.83 lbs (375 g) |
