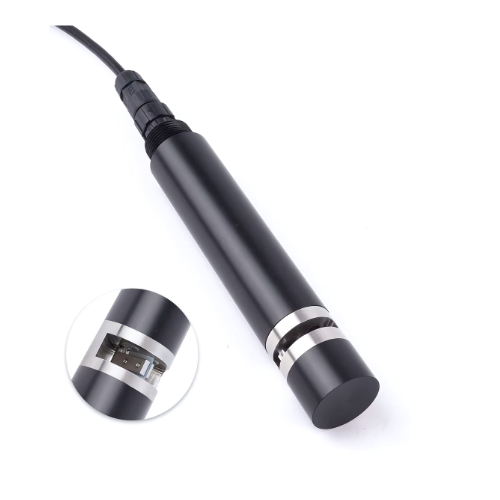

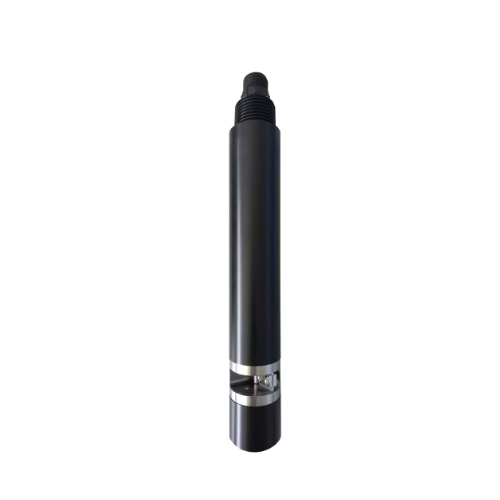

Dual Light Source Sensor for COD and Turbidity with RS485 and MODBUS Output – Amuse Tech Solutions
This eco-friendly water quality monitoring device features compact design, automatic turbidity interference compensation, and high measurement accuracy for COD and turbidity.
Description
Overview
Amuse Tech Solutions dual light source sensor for COD and turbidity with RS485 and MODBUS output is the COD sensor is a new generation of environmentally friendly COD sensor launched by our company. It requires no reagents, no pollution, and is more economical and environmentally friendly.
Features
- No reagents, no pollution, more economical and environmental protection
- Small size, easy installation, and continuous water quality monitoring
- Measure COD, turbidity and temperature parameters
- Automatic compensation for turbidity interference
- With a cleaning brush to prevent bio-adhesion
- Small drift, fast response, more accurate measurement
- Excellent stability even for long-term monitoring
- Maintenance-free, long service life and low cost of use
- Digital sensor, RS-485 interface, Modbus/RTU protocol
- Low power design, anti-interference design
Technical Specifications
| COD Precision | ± 5 % F.S. |
| COD Resolution | 0.1 mg or L |
| Turbidity range | 0NTU to 100 NTU |
| Turbidity accuracy | ± 5 % F.S. |
| Turbidity resolution | 0.1 NTU |
| Calibration method | Two-point calibration |
| Output method | RS-485 bus, Modbus or RTU protocol |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | <0.2W at 12 VDC |
| Protection level | IP68 |
| Installation method | Immersion installation |
| Working conditions | 32 to 113°F (0 ℃ to 45 ℃) < 0.2 MPa |
| Storage temperature | 23°F to 149°F (-5 ℃ to 65 ℃) |
