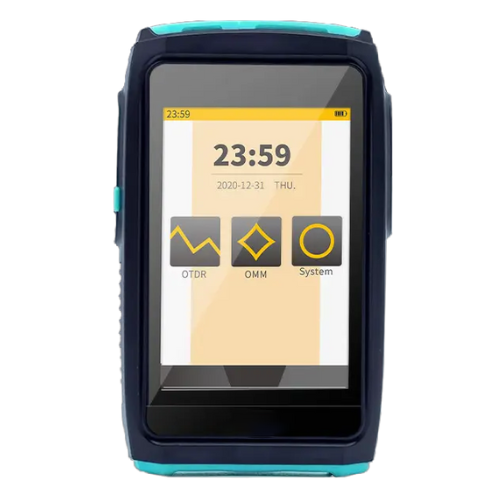

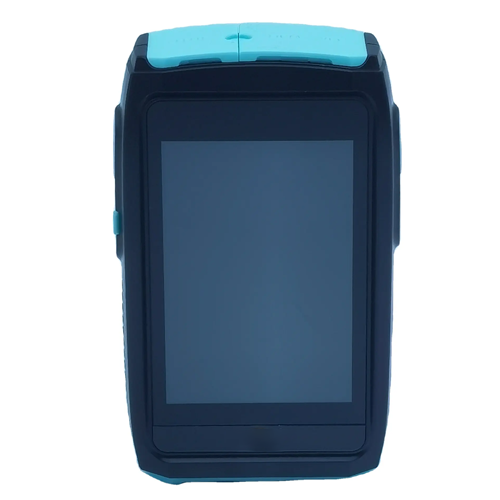

Dual Band Optical Timing Automatic Measuring Precision – Amuse Tech Solutions
High precision, versatile, portable, and automated optical timing device. Perfect for a range of applications with reliable measurements.
Description
Features
- Mini and compact design
- High-definition touch screen
- Dust-proof hidden interface
- LED light for visibility
Â
Technical Specifications
| Dual Wavelength | 1550 nm & 1310 nm |
| OTDR/OLS Connector | SC/UPC |
| Measurement Modes | Real time, average, automatic |
| Input Light Detection | Support |
| Data Storage | For saving and analyzing test results |
| LCD | 3.5-inch high-definition touch screen |
| Self-Calibration | Support |
| LED Light | Support |
| OPM | -58 °F to 79 °F (-50 to +26 dBm) |
| Wavelength | 1550(±20nm) x ZS1000-A/B & 1310(±20nm) x ZS1000-A |
| Dynamic Range | 20 dB |
| Test Range | 0.06 mi to 49.7 mi (0.1 km to 80 km) |
| Pulse Width | 5 ns to 20 ns |
| Measurement Time | 5 s to 180 s |
| Attenuation Dead Zone | 472.4 in (12 cm) |
| Event Dead Zone | Less than 118.1 in (< 3 cm) |
| Sampling Point | 8000 |
| Type-C Cable | Type-Cx1 |
| Relative Humidity | < 90 % |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70°C) |
| Weight | About 7.65 oz (217 g) |
| Dimension | 4.6 in x 2.8 in x 1.3 in (11.7 cm x 7 cm x 3.3 cm) |
| Operating Temperature | 32 °F to 122 °F (0 °C to 50 °C) |
