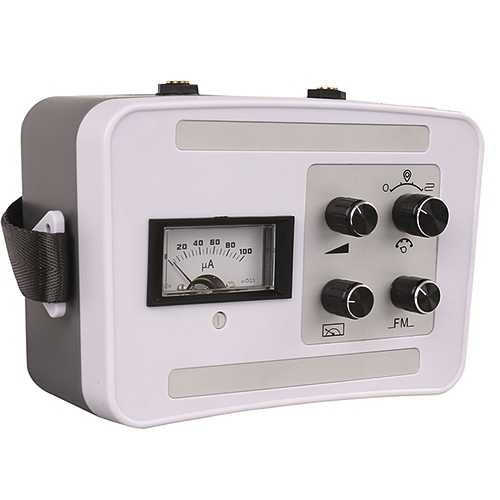

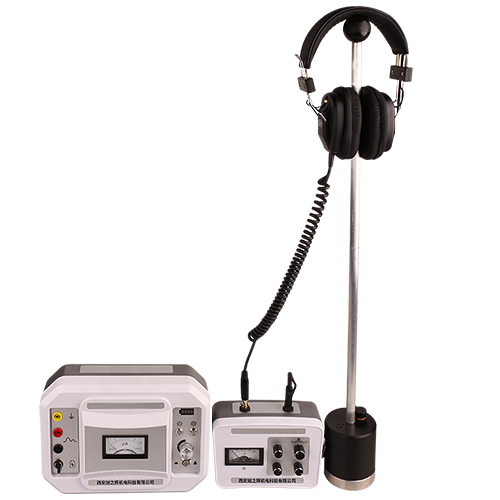

Digital Cable Fault with Magnetic Sound Synchronization Mode – Amuse Tech Solutions
Advanced cable continuity tester with magnetic sound synchronization, and a lightweight, portable design for versatile applications.
Description
Features
- Magnetic Sound Synchronization Mode
- Precise Positioning Accuracy System
- High-Frequency Audio Reception
- Lightweight And Portable Design
- Low Power Consumption
Technical Specifications
| Receiving Mode | Magnetic Sound Synchronization |
| Receiving Frequency | Audio Frequency |
| Magnification | 50,000 times |
| Output Impedance | 350 Ω |
| Positioning Accuracy | ±0.66 ft (±0.2 m) |
| Power Dissipation | Quiescent current < 10mA, working current ≤ 10mA |
| Power Supply | DC 9 V Battery Power |
| Operating Temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Volume (Packing Box) | 16.85 in × 13.78 in × 9.06 in (42.8 cm × 35 cm × 23 cm) |
| Net Weight (N.W.) | 14.77 lbs (6.7kg) |
