Customizable Fiber Testing OTDR with Online Light Alarm – Amuse Tech Solutions
Versatile OTDR with customizable dynamic ranges, wavelength options, online light alarm, and remote control for efficient fiber network testing.
Description
Features
- Customizable Wavelength Options
- Supports Splitters Pass-Through
- Online Light Alarm
- Fiber Link Mapping
Technical Specifications
| Pulse Width (SM) | 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 µs, 2 µs, 5 µs, 10 µs, 20 µs |
| Built-In Fiber link Measurement | Yes |
| Built-In Laser source | Yes |
| Pulse Width (MM) | 850 nm: 3 ns to 500 ns; 1300 nm: 3 ns to 2 µs |
| Distance Range (SM) | 328 ft to 149 mi (100 m to 240 km) |
| Distance Range (MM) | 850 nm: 1640 ft to 6.2 mi (500 m to 10 km); 1300 nm: 1640 ft to 49.7 mi (500 m to 80 km) |
| Sampling Resolution | Minimum 0.16 ft (0.05 m) |
| Sampling Points | Maximum 128,000 |
| Linearity | ≤0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.39 in (1 cm) |
| IOR Setting | 1.2000 to 1.7000 |
| Distance Accuracy | ±(3.28 ft + test distance × 0.00003 + sampling resolution) |
| Memory Capacity | 80,000 group curves |
| VFL | 10 mW, CW/2Hz |

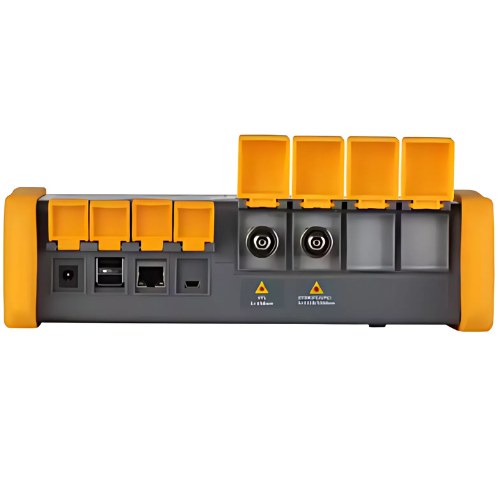

| Interface | 1*RJ-45, 3*USB (Type A×2, Type B×1) |

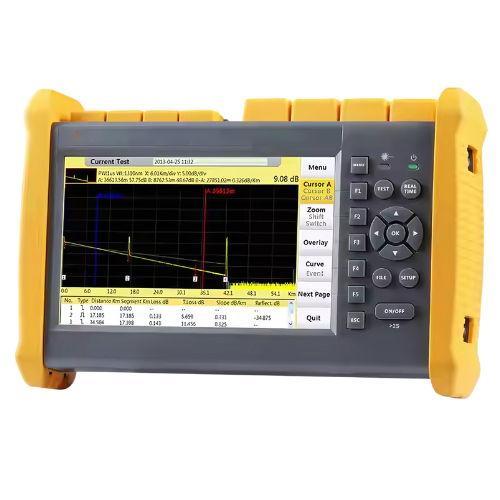

| Display | 7-inch TFT-LCD (touchscreen is optional) |
| Battery | 7.4V / 4.4Ah lithium battery (with air traffic certification) |
| Accessories | Power adapter, Charge cord, Lithium battery, FC adapter, USB cable, Quick guide, Test report, CD, Carrying bag, Wrist strap |
| Optional | SC/LC adapter, Fiber microscope, Launch cable box |
| Operating Temperature | Working: 14 °F to 122 °F (-10 °C to +50 °C); Storage: -4 °F to 158 °F (-20 °C to +70 °C) |
| Dimension | 9.96 in × 6.61 in × 2.89 in (25.3 cm × 16.8 cm × 7.35 cm) |
| Weight | 3.31 lbs. (1.5 kg) |
