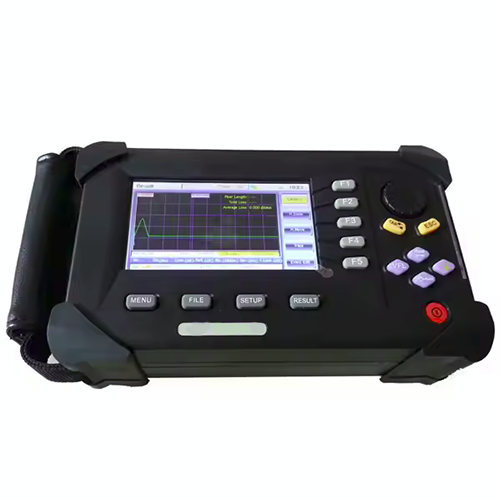

Cost Effective OTDR with Reliable Performance – Amuse Tech Solutions
Cost-effective optical time domain reflectometer for fiber optic network testing. Accurate fault location and reliable performance.
Description
Features
- Cost-Effective
- Accurate Fault Location
- User-Friendly Operation
- Reliable Performance
Technical Specifications
| Type | OTDR |
| Application | Telecommunication |
| Fiber Type | SMF |
| Network | Wireless LAN |
| Optical Connector | FC/SC/ST (universal connector) |
| Wavelengths | 1310 nm /1550 nm ± 20 nm |
| VLS Center Wavelength | 650 nm ± 20 nm |
| VLS Output Power | < 1 dBm |
| VLS Interface | FC/UPC |
| Dynamic Range (HW-350TA) | 28 dB /26 dB |
| Dynamic Range (HW-350TB) | 32 dB /30 dB |
| Pulse Width | 10 ns, 30 ns, 50 ns, 100 ns, 300 ns, 1.0 µs, 2.5 µs, 10 µs |
| Event Dead Zone | 8.2 ft (2.5 m) |
| Attenuation Dead Zone | 45.9 ft (14 m) |
| Distance Range | 0.3 miles to 75 miles (0.5 km to 120 km) |
| Distance Measurement Accuracy | ± (3.3 ft + sample space + measurement distance x 0.005%) |
| Linearity | ±0.05 dB/dB |
| Memory Capacity | 1000 |
| Display | 3.5 in LCD |
| Battery | NiMH Smart Charge Battery |
| Continuous Working Time | > 10 hours (From Bell core TR-NWT-001138) |
| Dimension (From Image) | 9.1 in x 4.7 in x 2.4 in (23 cm x 12 cm x 6 cm) |
| Weight | 31.75 oz (0.9 kg) |
