Description

Overview

Amuse Tech Solutions LAN network cable tester provides a complete test for the next generation ethernet solution. There are many different test modules, which can help to verify the performance of their Ethernet. This product has two 10 Mb/s or 100 Mb/s or 1000 Mb/s electrical interfaces, two 100 M to 1000 M SFP optical interfaces and two 10 Gbps SFP+. It can generate and analyze the test traffic streams and provide the result. This product provides installation, maintain services and activates new professional services. This device can provide a variety of test functions, which can help users to control and know the quality of Ethernet. This device will be a comprehensive and simple ethernet and advanced IP connectivity test suited for field technicians



Features

• Smart and durable, field application ready
• 7 in (17.78 cm) HD color touch screen, sun readable
• User-friendly user interface
• lPC remote control
• Test profiles and data management, USB or FTP transfer
• Comprehensive testing for Ethernet testing
• Lithium battery up to 4 hrs continuous testing



Technical Specifications

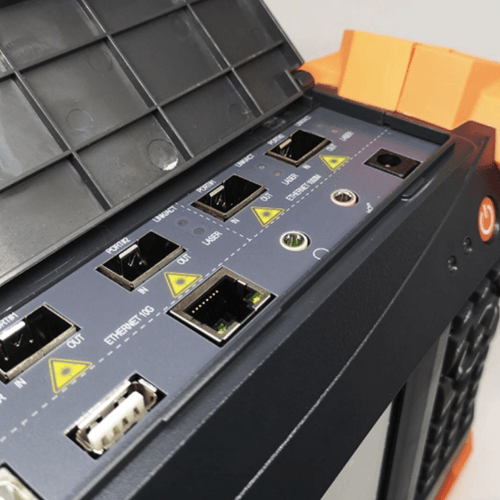

Optical Interface	Two GigE Ports
Electrical Interfaces	Two Ports: 10 BaseT or 100 BaseT Half or Full Duplex and 1000 BaseT Full Duplex, Choose straight or crossover cables
SFP + Optical Interface (10 g)	Two 10 GigE Ports
Testing Items
Y.1564	Capability to perform the service configuration test and service performance test as per ITU-T Y.1564. Tests can be performed to loopback or dual test set mode for bidirectional results.
Rfc2544	Throughput, back-to-back, frame loss and latency measurement as per RFC2544; Frame size: RFC-defined sizes, user-configurable 1 to 7
BERT Bit Error Test	Up to layer 4 supported with or without VLAN Q-in-Q.
Through Mode	Sectionalize traffic between a service provider’s network and customer premises equipment.
Service Disruption Time (SDT)	Disruption time statistics include shortest, longest, last, average, total and pass or fail thresholds.
Multi-stream Generation	Capability to transmit and monitor up to 16 streams of ethernet and IP traffic.
Traffic Generation and Monitoring	Capability to generate and monitor Traffic of Ethernet and IP; Traffic shaping can be based on those statistics: throughput, frame loss, packet jitter, frame sorting, latency, frame size, traffic type and traffic monitoring
VLAN Stacking	Capability to generate streams with up to two layers of VLAN (including IEEE802.1ad Q-in-Q tagged VLAN) and to filter received traffic by VLAN ID or VLAN priority at any of the stacked VLAN layers.
Ipv6 Test	Including BERT, RFC2544, Traffic generation and monitoring, Background traffic, Smart Loopback, Ping and trace route

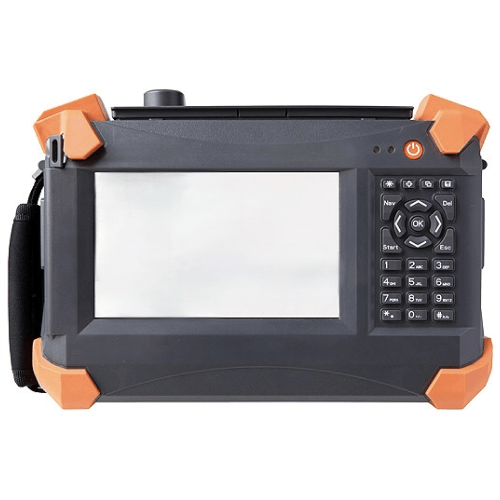

Display	7 in (17.78 cm) color TFT touch screen (resolution 960 x 480)
Data Storage	8 GB
Interface	USB 2.0 port RJ-45 LAN
Battery	Rechargeable lithium battery, 4 hrs continuous operation
Power Supply	AC or DC adapter; Input 100 V to 240 V AC, 50 Hz to 60 Hz, 2 A(Max); Output 24 V DC 90 W
Dimension	1.10 in x 7.32 in x 2.95 in (282 mm x 186 mm x 75 mm)
Weight	6.39 lb (2.9 kg)
