Desktop UHF RFID reader and tag programmer with a circular antenna, offering a 1-12 inch read range and USB connectivity for seamless data transfer.
Description
Overview

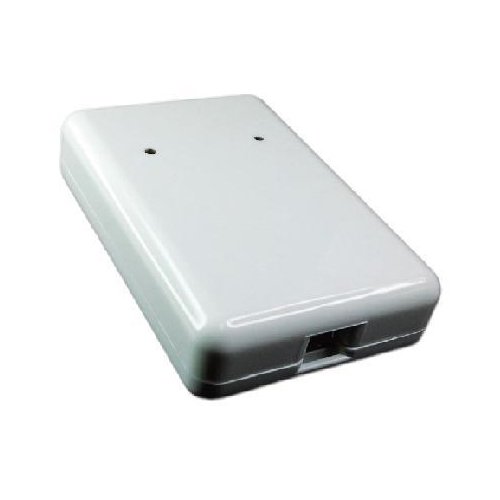

This compact UHF RFID reader and tag programmer is designed for use in any application requiring an RFID reader with a built in antenna and is packaged for the desktop. It reads tags compliant with EPC Class 1 Gen 2, ISO18000-6C as well as Alien and NXP custom command set. It also supports tag independent 128-type block write for fast encoding. Featuring an integrated circular polarized antenna, this reader provides a read range of about 1 to 12 inches from the surface of the reader depending on the tag. The desktop RFID reader is FCC Part 15 compliant. It uses USB for power supply and data exchange with a host computer.
Key Features
- Compact size, light weight
- Features an integrated circular polarized antenna
- Compliant with EPC Class 1 Gen 2, ISO18000-6C as well as Alien and NXP custom command set
- 1 to 12 inch read range
- USB port for power supply and data transfer
Technical Specifications
| Frequency | UHF 902 to 928 MHz |
| Protocols | EPC Class 1 Gen 2, ISO18000-6C Alien Custom Command: BlockReadLock() NXP custom command to control EAS bit features Tag independent 128-type (up to) block write for fast encoding. Future protocols and optional EPC features supported through firmware updates. |
| Regulatory Compliance | FCC 15.247 |
| Antenna | Circular 2 dBi |
| Read Rate | Up to 200 tag/s, 50 tag/s typical |
| Communication | USB 2.0 |
| RF Power | 10-22 dBm; 1 dBm increments |
| Read Range | 1 in-12 in: depending on tag type, settings and environmental conditions |
| Input Power | 5 V, 500 mA peak through USB 2.0 |
| Upgradeable Firmware | Yes |
| LED Indicators | Power, Command/RFID activities |
| Operating Temperature | -20 °C to 70 °C (-4 °F to 158 °F), non condensing |
| Storage Temperature | -30 °C to 85 °C (-22 °F to 185 °F), non condensing |
| Dimensions (L*W*H) | 12 cm * 8 cm * 3 cm |
| Weight | 140 g |
| Operation Environment | Indoor only |
