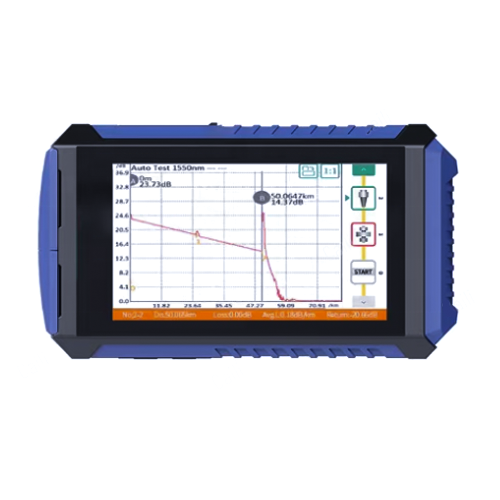

Compact OTDR with Optical Power Measurement – Amuse Tech Solutions
Compact device with multi-touch screen, OTDR function, and versatile tools for fiber testing, maintenance, and repair with high precision
Description
Features
- Integrated OTDR Functionality
- Built-in Visual Fault Locator

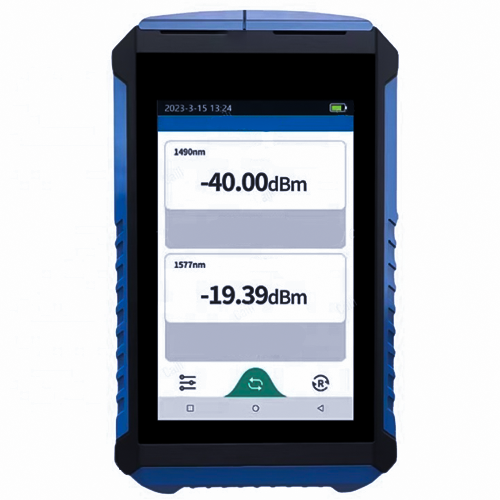

- Optical Power Measurement
- Stable Optical Light Source
Technical Specifications
| File Format | SOR Standard File Format |
| Standard Configuration | OTDR, Event Map, OPM, LS, VFL, RJ45 cable tracker (including Cable Tracker), Flashlight |
| Ranging Accuracy | ± (3.28 ft + sample interval + 0.005% × test distance) |
| Loss Analysis | 4-point method / 5-point method |
| Dynamic Range | 24 dB; 26/24 dB |
| Event Blind Zone | 4.92 ft (1.5 m) |
| Attenuation Blind Zone | 26.25 ft (8 m) |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimensions | 8.5 in × 5.9 in × 2.8 in (21.5 cm × 15 cm × 7 cm) |
| Weight | 2.54 lbs (1.15 kg) |
