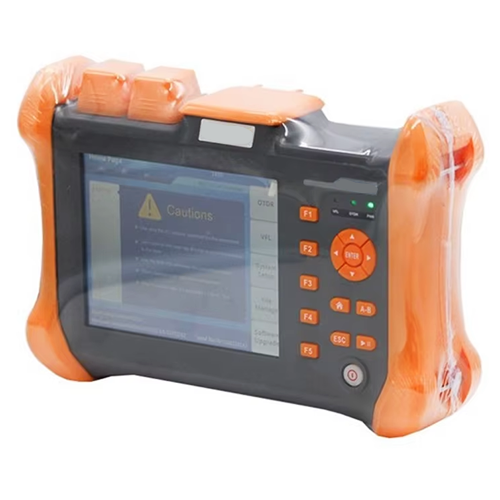

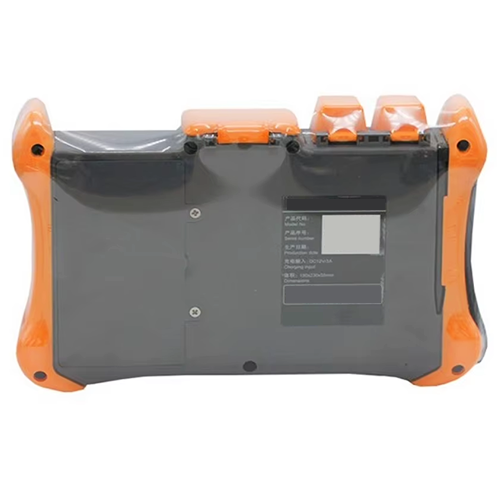

Compact OTDR Touchscreen VFL Long Battery Life – Amuse Tech Solutions
High-performance OTDR for optical network testing, featuring advanced analysis, user-friendly interface, and compact, durable design.
Description
Features
- Touchscreen Display
- Integrated VFL
- High Precision Measurements
- Long Battery Life
Technical Specifications
| Battery | 7.4 V/4.4 Ah lithium battery, supports 8 hours of continuous operation |
| Sampling Points | 128,000 |
| Linearity | ≤0.05 dB/dB |
| Loss Threshold | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Distance Resolution | 0.03 feet (0.01 m) |
| Distance Accuracy | ± (3.28 feet (1 m) + measuring distance × 3 × 10⁻⁵ + sampling resolution) |
| Data Storage | 20,000 curve groups |
| VFL | 10 mW, CW/2 Hz |
| Interface | 3 USB ports (Type A ×2, Type B ×1) |
| Display | 5.6-inch TFT-LCD, touchscreen |
| Humidity | ≤95% (non-condensing) |
| Operating Temperature | 14°F to 122°F (-10°C to +50°C) |
| Dimensions | 9.96 in × 6.61 in × 2.89 in (25.3 cm × 16.8 cm × 7.35 cm) |
| Weight | 3.3 lbs. (1.5 kg, including battery) |
