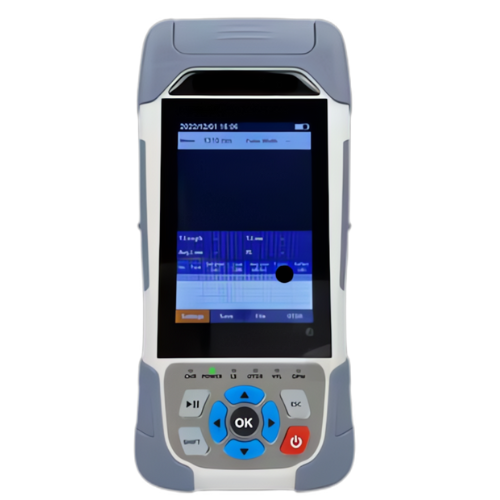

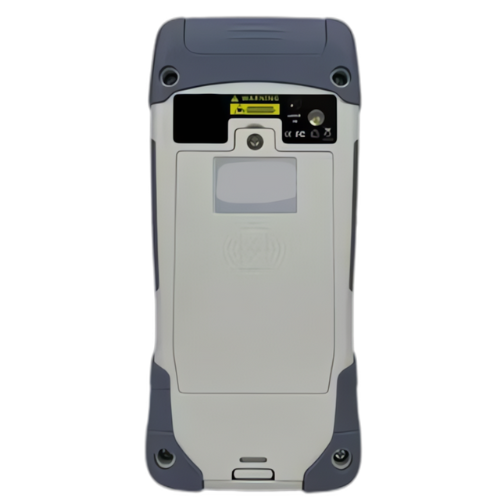

Compact Multi Function OTDR with High Resolution Touchscreen – Amuse Tech Solutions
Compact fiber tester with multiple functions, long battery life, and optical protection for measuring loss, length, and quality in fiber networks.
Description
Features
- Compact Palm Design
- Integrated Multi-Function Tester
- Long Battery Standby
- High-Resolution Touchscreen
Â
Technical Specifications
| Safety Level | Class IIIB |
| File Format | .sor |
| Memory | >1000, supports external SD |
| Data Interface | USB Type C |
| Connector | SC/FC/ST |
| Screen | 3.5-inch TFT-LCD |
| Battery | 3.7 V/4000mAh |
| RJ45 Test | Supports network wire sequence testing and wire alignment |
| OPM | Type A: +10 dBm to –70 dBm; Type B: +26 dBm to –50 dBm |
| VFL | 10 mW, CW/2Hz |
| LS (Laser Source) | 1310/1550 nm, output power: -5dBm |
| Event Dead Zone | <8.2 ft (2.5 m) |
| Attenuation Dead Zone | <26.2 ft (8.0 m) |
| Sampling Points | Maximum 64,000 |
| Sampling Resolution | 9.84 ft in to 26.2 ft (25 cm to 8 m) |
| Loss Resolution | 0.001dB |
| Range Resolution | 0.003 ft (0.001 m) |
| Refractive Index | 1.0000 to 2.0000 |
| Reflection Accuracy | ±3dB |
| Pulse Width | 5ns to 20μs |
| Measuring Range | 328 ft to 262467.2 ft (100 m to 80 km) |
| Linearity | 0.2 dB/dB |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimension | 6.69 in × 4.72 in × 1.18 in (17 cm × 12 cm × 3 cm) |
| Weight | 0.75 lb. (0.34 kg, including battery) |
