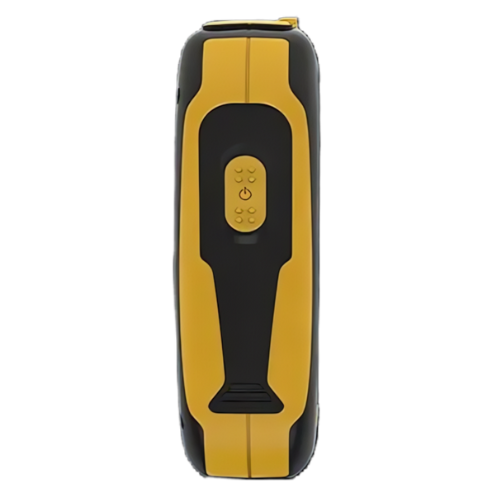

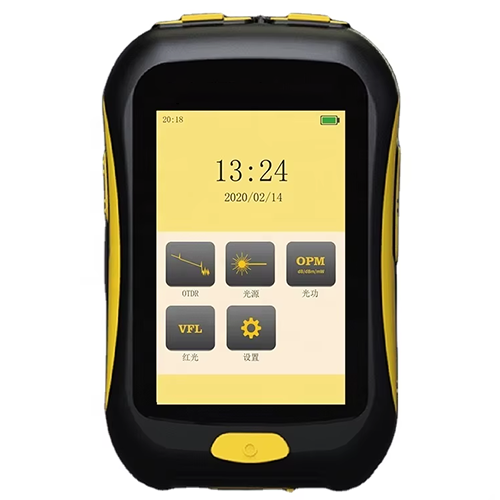

Compact Mini OTDR Touch Screen OPM VFL SC Connector – Amuse Tech Solutions
Compact OTDR with advanced long-range detection, touch screen, integrated OPM, VFL, OSL, LED tester, and SC connector for fiber networks
Description
Features
- Long-range detection
- Touch screen interface
- Integrated OPM & VFL
- SC connector compatibility
Technical Specifications
| Working Hours | Standby: >12 hours, Continuous test: >8 hours |
| Data Storage | Up to 200 articles |
| Data Interface | Type C USB |
| Operating Wavelength | 650 nm ± 20 nm |
| Output Rating | ≥10 mW |
| Work Pattern | CW / 1 Hz / 2 Hz |
| Optical Connector | Universal joint |
| Screen | 3.5-inch color TFT LCD (320 x 480 pixels) |
| Visual Fault Locator (VFL) | Built-in for pinpointing fiber faults |
| Battery Type | Rechargeable lithium-ion |
| Power Source | USB charging and external adapter |
| Relative Humidity | 0 to 95% (without condensation) |
| Storage Temperature | -40 °F to 158 °F (-40 °C to 70 °C) |
| Operating Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Dimensions | 5 in x 3.1 in x 1.5 in (12.6 cm x 8 cm x 3.7 cm) |
| Weight | ≤0.44 lbs. (0.2 kg, including battery) |
