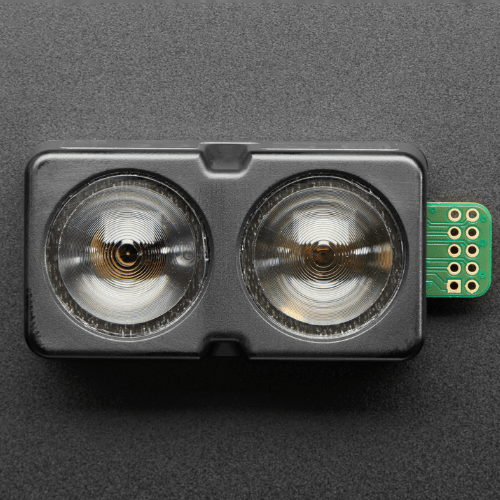

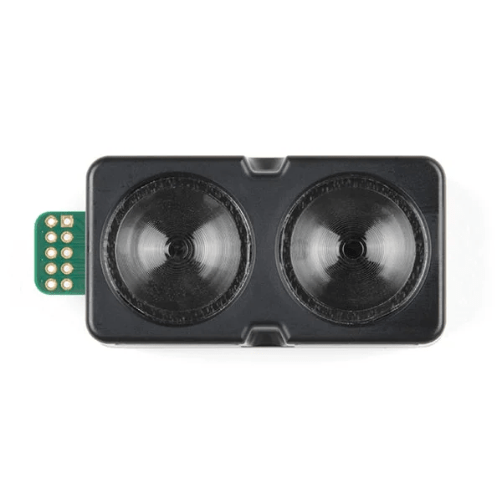

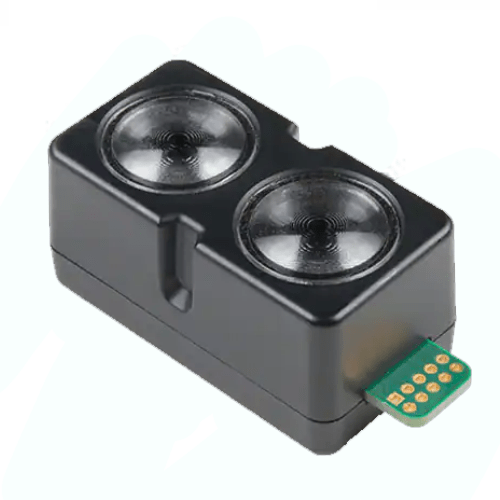

Compact LiDAR Sensor, 0.3-12m Range, 5mm Resolution, 100 Hz – Amuse Tech Solutions
This LiDAR Distance Measurement Sensor has an applicable voltage of 4.5 V to 6 V, an operating range of 0.98 ft to 39.4 ft and frequency of 100 Hz.
Description
Technical Specifications
| Operating Range | 0.98 ft to 39.4 ft (0.3 m to 12 m) |
| Max Operating Range 10% Reflectivity | 16.4 ft (5 m) |
| Applicable Voltage | 4.5 V to 6 V |
| Average Power Consumption | 0.12 W |
| Acceptance Angle | 2.3° |
| Communication Interface | UART |
| Minimum Resolution Ratio | 0.2 in (5 mm) |
| Frequency | 100 Hz |
| Light Sensitivity | 70,000 lux |
| Accuracy | 1% (<19.7 ft (6 m)),2% (19.7 ft to 39.4 ft (6 m to 12 m)) |
| Operating Temperature | -4 ℉ to 140 ℉ (-20 ℃ to 60 ℃) |
| Size | 1.7 in x 0.6 in x 0.63 in(42 mm x 15 mm x 16 mm) |
