Compact High Precision Linear Encoder Rope Displacement Sensor, IP67 Grade – Amuse Tech Solutions
Position sensor with 88.6 in stroke, 0.05% FS precision, IP67 protection, and 500M strokes lifespan. Ideal for various current and voltage modes.
Description
Overview

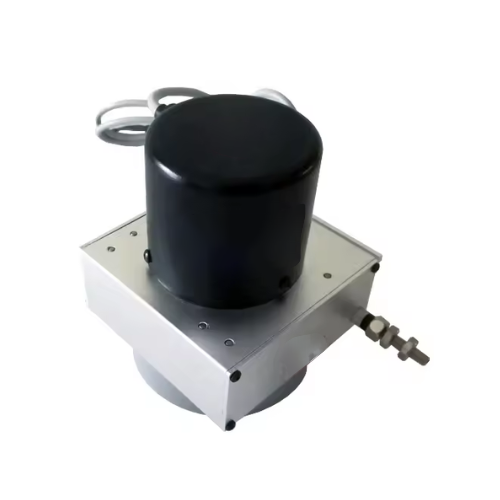

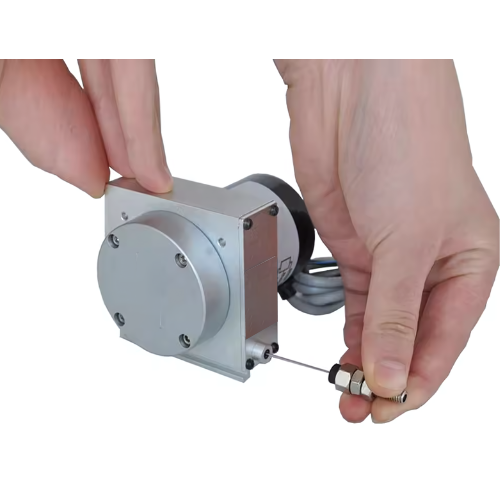

Amuse Tech Solutions compact high precision linear encoder rope displacement sensor, IP67 also known as rope sensor, rope encoder. It is fully compacted by a linear displacement sensor in structure which combined the advantages of an angle sensor and linear displacement sensor, ranging from a few hundred millimeters to 10 meters, with 4 mA to 20 mA analog current, analog voltage 0 to 5 V or 0 V to 10 V and pulse A, B, Z-phase digital output to meet various signals demand of the large stroke, high precision for the majority of customers use.
Technical Specifications
| S Frame size | The maximum effective stroke 88.6 in (225 cm,) |
| Linearity | (Universal) 0.25 % FS (Precision) 0.05 % FS |
| Repeatability | 0.01 % FS to 0.005 % FS |
| Product Type | Current Mode (4 to 20 mA or 20 to 4 mA) voltage type (0 to 10 Vdc or 10 to 0 Vdc) |
| Resistive | (0 to 5 kΩ or 0 to 10 kΩ) pulse type (typically 3600 ppr to 5000 ppr, incremental) |
| Fixing screws | M 0.16 in (0.4 cm); Installation: bracket (two) |
| Effective life | 500 million times reciprocating stroke; protection class: IP67 |
| Mounting screw | M4 |
| Traction screws | M6 |
| Mounting bracket hole distance | 1.1024 ± 0.0197 in (2.8 ± 0.05 cm) |
| The distance between the two brackets | recommended between 1.5748 to 2.1654 in (4 cm to 5.5 cm) |
