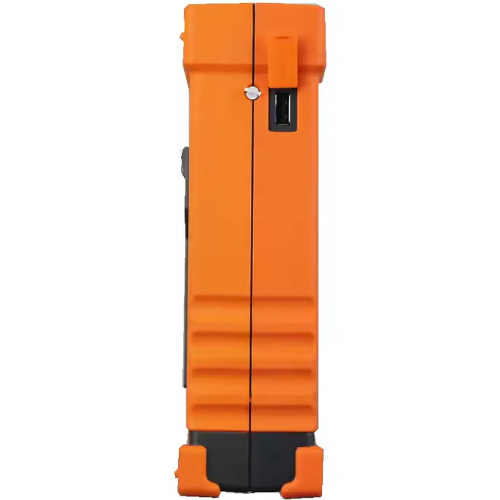

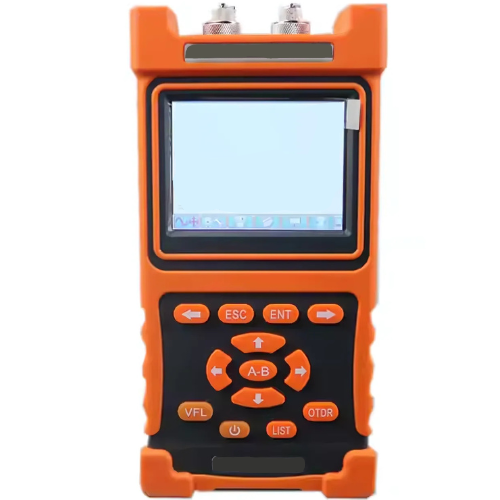

Compact High Accuracy OTDR for Network Testing – Amuse Tech Solutions
Compact and versatile OTDR for fiber network testing. Boosts field productivity with advanced features like a touchscreen and wireless connectivity.
Description
Features
- Compact design
- User-friendly
- High accuracy
- Fast testing
Technical Specifications
| Emitter Type | OTDR LD |
| Brand | OEM |
| Connector Type | OTDR FC, PC (or SC or ST) |
| Wavelength | 1310±20nm / 1550±20nm |
| Dynamic Range | 32/30 dB |
| VFL | 1 mW |
| Linearity | ±0.05 dB/dB |
| Measure Time | OTDR 15s, 30s, 1min, 2min, 3min |
| Range | 74.5 mi to 99.5 mi (120 km to 160 km) |
| Event Dead Zone | < 4.92 ft (<150 cm) |
| Attenuation Dead Zone | < 26.2 ft (<800 cm) |
| Pulse Width | 5ns, 10ns, 30ns, 100ns, 300ns, 1.0us, 2.5us, 10us |
| Distance Uncertainty | ± (328.1 ft (1.0 m) ± 0.005% x testing distance ± resolution) |
| Loss Resolution | 0.001dB |
| Distance Resolution | 3.94 in (10 cm) |
| Data Storage | OTDR 1000 traces |
| Display | 3.5 in TFT color LCD |
| Interface | USB |
