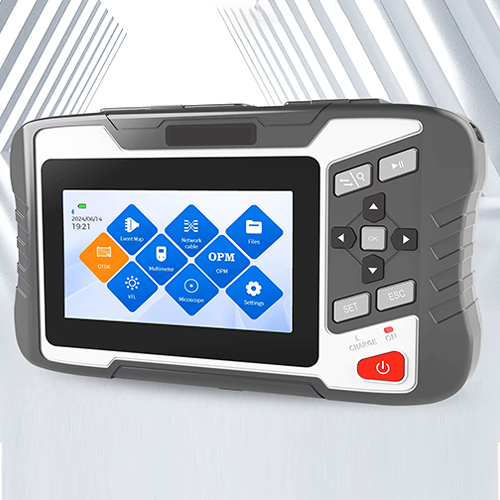

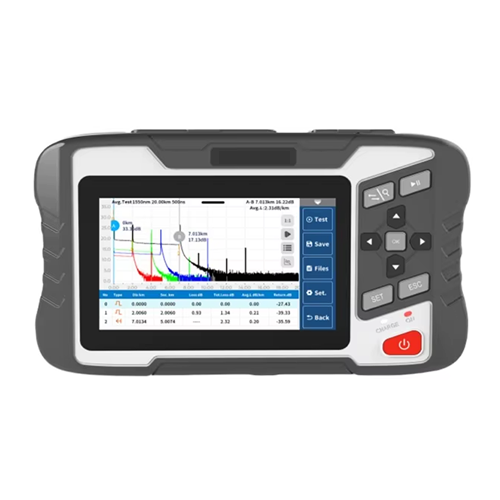

Compact Handheld OTDR High Precision for Fiber Testing – Amuse Tech Solutions
Compact mini OTDR featuring fast fiber testing, high precision results, user-friendly interface, and durable lightweight design.
Description
Features
- Fast fiber testing
- High precision results
- User-friendly interface
- Durable lightweight design
Technical Specifications
| Display | 4.3-inch capacitive touchscreen, 800×480 resolution |
| Integrated Functions | OTDR, Event Map, OPM, LS, VFL, RJ45 Testing, Microscope, Flashlight, Insertion Loss Test |
| Memory | 8 GB, stores over 200,000 curves |
| Connectors | FC/UPC (interchangeable with SC, ST) |
| Dynamic Range | 24 dB to 30 dB, depending on the model |
| Wavelength | 1310 nm, 1550 nm, 1625 nm, 1650 nm, based on model |
| Event Dead Zone | ≤ 4.92 ft (1.5 m) |
| Attenuation Dead Zone | 26.25 ft (8 m) |
| Test Range | 328 ft to 161 mi (0.1 km to 260 km) |
| Pulse Width | 3 ns to 20 µs |
| Distance Measurement Accuracy | ±(3.28 ft + sampling interval + 0.005% × test distance) |
| Linearity | ≤ 0.05 dB/dB |
| Maximum Sampling Points | ≥ 160,000 |
| Distance Resolution | 0.0033 ft (0.001 m) |
| RJ45 Cable Test | Cable tracking and sequencing, test length ≤ 984.25 ft (300 m) |
| Operating Temperature | 14°F to 122°F (-10°C to +50°C) |
| Dimensions | 7.44 in x 4.53 in x 1.69 in (18.9 cm x 11.5 cm x 4.3 cm) |
| Weight | ≤ 1.32 lb. (0.6 kg) |
