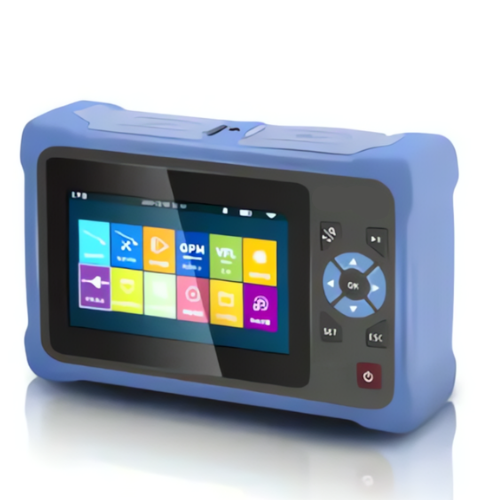

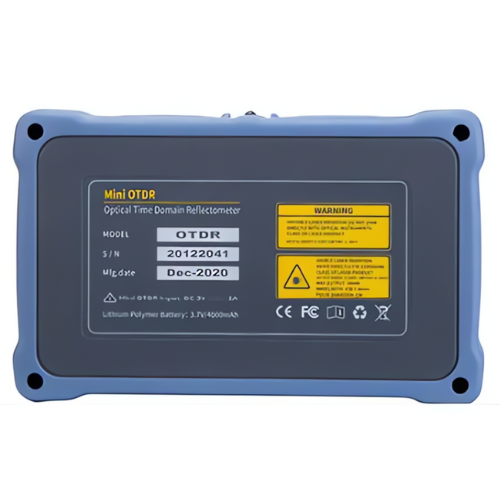

Compact Design Optical Time Domain Reflectometer – Amuse Tech Solutions
Advanced optical testing tool for fiber networks with customizable wavelengths, exceptional performance, compact design, and user-friendly interface.
Description
Features
- Compact design structure
- Customizable wavelength options
- Precise fault detection
- User-friendly interface
Technical Specifications
| Use | FTTH |
| Network | None |
| Function | 12 in 1 |
| Product Name | MINI OTDR |
| Color | Blue or Orange |
| Connector Type | SC FC ST |
| Fiber Type | G652 |
| Memory | 8G |
| Test Wavelength | 1310 nm to 1550nm, 1550 nm, 1310 nm or 1550 nm |
| Dynamic Range/dB | 24 dB to 26 dB |
| Measurement Range/km | 0.3 mi to 62 mi (0.5 km to 100 km) |
| Reflection Accuracy | ±0.3 dB |
| Calibration Wavelength | 850 nm to 1650 nm |
| Display Screen | 4.3-inch Multi-touch capacitive screen |
| Power Supply | Lithium polymer: 3.7 V, 4000 mAh; Power Adapter: 5V DC, 2A |
| Operating Temperature | 14 °F to 131 °F (-10 °C to +55 °C) |
| Size | 7.1 in x 4.3 in x 2 in (18 cm x 11 cm x 5cm) |
| Weight | 17.64 oz (500g) |
