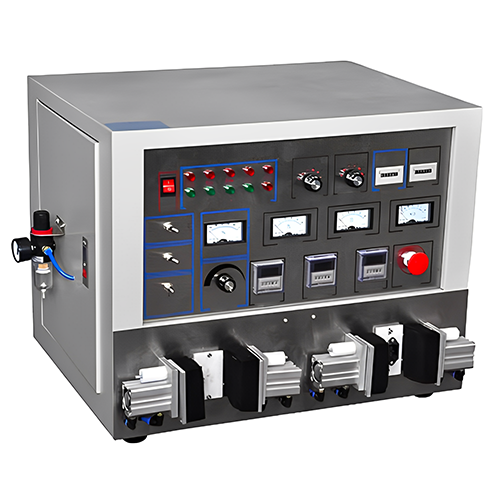

Cable Testing Machine with High Voltage Testing Capability – Amuse Tech Solutions
Efficient cable continuity tester with PIN support, advanced four-wire measurement, high voltage insulation test, and interface connectivity.
Description
Features
- Advanced Four-Wire Measurement
- High Voltage Testing Capability
- Auto/Manual Switching Modes
- User-Friendly Interface Options
Technical Specifications
| Scanning Mode | Auto/Manual Switchable |
| Measurement Points | 64 PIN |
| Short-Circuit Judgment Value | Minimum 200 Ω |
| High Voltage Test | 100 V to 700 V |
| Insulation Test | 5 V to 1000 V |
| Display/Alarm | 320 x 240 dpi LED, Pass/Fail Indicators |
| Measurement Connection | 256 / 512 Test Points (Optional) |
| Calibration | Hipot Calibration +/- Output |
| Interface | RS-232, Printer Port, Remote Control Port |
| Power Supply | 115 Vac / 230 Vac ±10%, 50 Hz |
| Accessories | Remote Control Cable, RS-232 Cable, Power Cord |
| Humidity | ≤75% RH |
| Cable Request | Max. 1 μF |
| Temperature Range | 59 °F to 95 °F (15 °C to 35 °C) |
| Weight | Around 28.66 lbs (13 kg) |
| Dimensions | 17.91 in x 7.48 in x 13.78 in (45.5 cm x 19 cm x 35 cm) |
