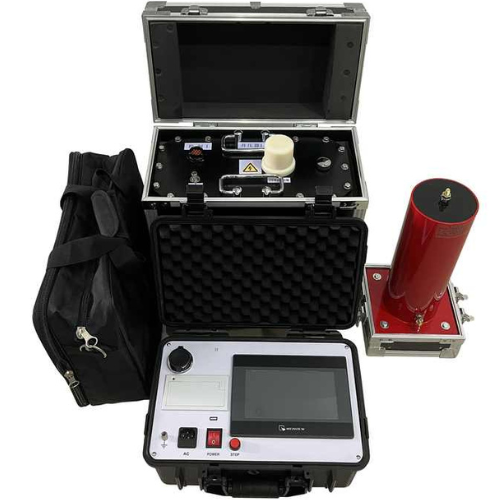

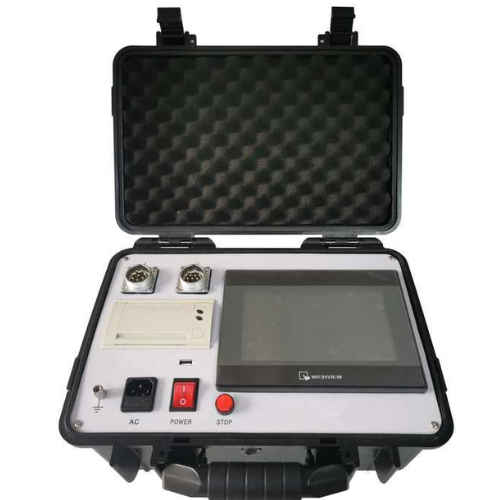

Cable Testing AC with Precise Voltage Accuracy Capability – Amuse Tech Solutions
Efficient high-voltage cable tester for accurate diagnostics, featuring multi-frequency output, robust load capacity, and low distortion.
Description
Features
- Precise Voltage Accuracy Capability
- Flexible Load Testing Range
- Indoor Outdoor Usability
- Low Waveform Distortion Rates
- Multi-Frequency Output Modes
Technical Specification
| Rated Voltage | 80kV (peak) |
| Load Capacity | 0.1Hz, ≤0.5µF; 0.05Hz, ≤1.0µF; 0.02Hz, ≤2.5µF; 0.01Hz, ≤5.0µF |
| Fuse | 25A |
| Useful Applications | Cables (35kV and below), Generators |
| Output Frequency | 0.1Hz, 0.05Hz, 0.02Hz, 0.01Hz |
| Loading Capability | 0.1Hz max 0.5µF; 0.05Hz max 1.0µF; 0.02Hz max 2.5µF; 0.01Hz max 5.0µF |
| Accuracy | ± (3% of full scale + 0.5 kV) |
| Voltage Waveform Distortion | ≤5% |
| Condition of Use | Indoor, Outdoor |
| Humidity | ≤85%RH |
| Power Supply | AC 50Hz, 220V ±5% |
| Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Weight | Control: 13.23 lbs (6 kg); HV Tank I: 66.14 lbs (30 kg); HV Tank II: 110.23 lbs (50 kg) |
