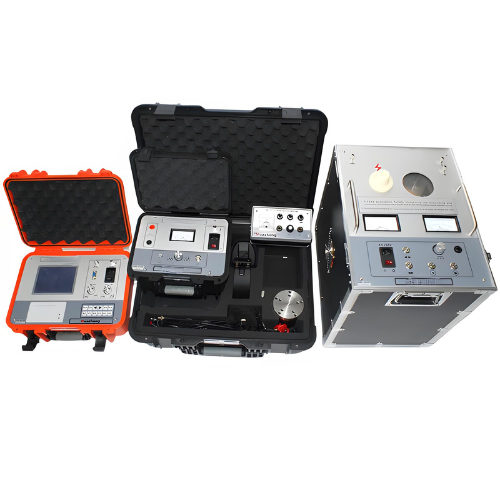

Cable Tester with Precise Positioning Accuracy – Amuse Tech Solutions
High-Performance Cable Continuity Tester Offering Precise Fault Detection, Adjustable Power, Advanced Sampling Methods, and Durable Design.
Description
Features
- Advanced Fault Detection
- Adjustable Power Output
- High Voltage Capacity
- Precise Positioning Accuracy
Technical Specifications
| Display | Industrial Grade 5 in LCD, Keyboard Operation |
| Measurement Functions | Distance, Speed, and Resistance Measurement |
| Sampling | Automatic Continuous Sampling, No Waveform Loss |
| Testing Methods | Flashover Sampling, Low-Impulse Method |
| Measurement Distance | Max: 37.3 mi (60 km), Min: 49.2 ft (15 m) |
| Pre-Locating Accuracy | Absolute: ± 32.8 ft (10 m); Relative: ±1% |
| Built-in Power | DC 2.6V/10.4Ah, External AC 220 V 50Hz |
| Signal Reception | Acoustic and Electromagnetic Waves |
| Magnification | 500,000 Times |
| Working Voltage | ±9 V ±20 % |
| Quiescent Current | <10 mA |
| Output Impedance | 350 Ω |
| Positioning Accuracy | 7.9 in (0.2 m) |
| Working Mode | Continuous Square Wave Signal |
| Output Signal | Audio |
| Receive Signal | Audio |
| Output Power | 100 W |
| Working Power Supply | 220 V ±10%, 50Hz ±5% |
| Impact High Voltage | 0 V to 35kV (Optional) |
| High Voltage Divider Accuracy | Level 1.5 |
| Built-in Capacitance | 4 μF |
| Discharge Power | 0 J to 2450 J |
| Charge Current | 320 mA |
| Output Voltage Polarity | Negative Polarity |
| Impact Power | 400 W |
| Overcurrent Protection | 16 A (More than 3 Seconds) |
| Working Power Supply | AC 220 V ±10%, 50 Hz ±2 Hz |
| Ambient Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Overtemperature Protection | 185 °F (85 °C) |
| Dimensions | 16.9 in x 13.6 in x 21.5 in (43 cm x 34.5 cm x 54.5 cm) |
| Weight | Not More Than 88.2 lbs (40 kg) |
