Cable Tester with Detects up to Eight Faults – Amuse Tech Solutions

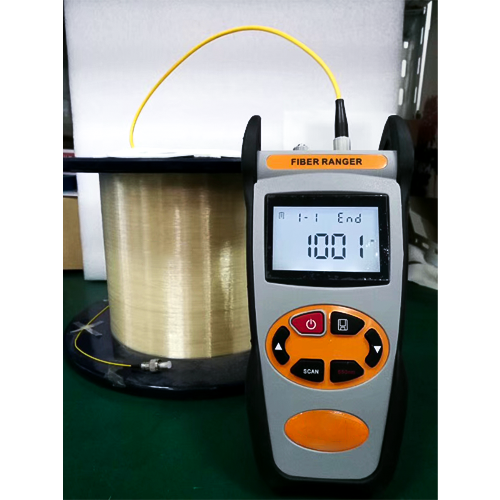

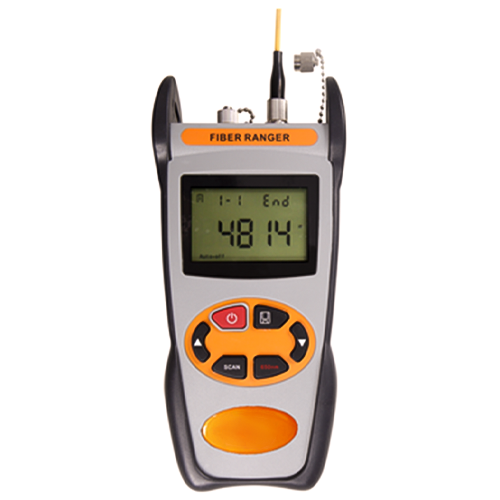

Portable fiber testing device with advanced OTDR technology, precise fault detection, and integrated analysis software for efficient diagnostics.
Description
Features
- Portable, rugged, lightweight design
- Accurate testing with repeatability
- Detects up to eight faults
- Automatic pulse width control
Technical Specifications
| Power Supply | Alkaline Battery (3 pcs AA 4.5 V Batteries) |
| Operating Wavelength | 1550 nm (1310 nm Optional) |
| Fiber Type | 9/125 um SM Fiber |
| Optical Connector Type | FC/PC |
| Detector Type | InGaAs |
| Peak Power of laser(mW) | ≥60 |
| Reflection Event Dead Zone | 49.21 ft (15 m) |
| Distance Accuracy (Reflection Event) | ± 6.56 ft (2m) +2 x 10(-4) Distance) |
| Wavelength of VFL Option(nm) | 650 |
| Output Power of VFL Option(mW) | >=1 |
| Date Storage Capacity | 1000 |
| Communication Port | USB |
| Battery Operating Time | ≥5000 measurements |
| Working Temperature (℃) | 23 ℉ to 104℉ (-5 ℃ to 40 ℃) |
| Storage Temperature (℃) | 14 ℉ to 140 ℉ (-10 ℃ to 60 ℃) |
