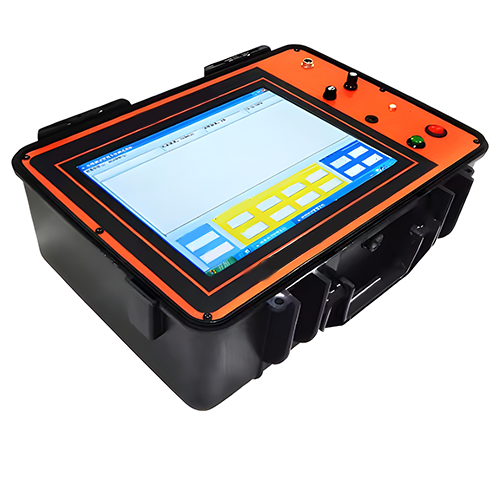

Cable Fault Tester with High Resolution Industrial Display – Amuse Tech Solutions
Advanced cable continuity testing device featuring high-resolution display, multiple test methods, and wide precision fault localization.
Description
Features
- High-Resolution Industrial Display
- Multiple Advanced Test Methods
- Precise Fault Localization Accuracy
- Long Standby Battery Life
- Wide Operational Temperature Range
Technical Specifications
| Display Method | 21-inch industrial-grade LCD touch screen (XP operating platform) |
| Storage Method | 8 GB |
| Test Method | Low voltage pulse, multiple pulse, lightning surge methods |
| Operation Mode | Dual operation using touch pen and touch mouse |
| Test Distance | Not less than 37.28 miles (60 km) |
| Shortest Test Distance (Blind Spot) | 0 ft to 16.4 ft (0 m to5 m) or no blind spots |
| Accurate Fixed Point Error | ± 0.66 ft (± 0.2 m) |
| Test Error | System error less than ± 1% |
| Multiple Pulse Generator | Impulse voltage ≤ 40 kV |
| Resolution V/Fm | V: Wave propagation velocity (m/µs); software cursor: 0.33 ft (0.10 m) |
| Instrument Sampling Frequency | 6.25 MHz, 12.5 MHz, 25 MHz, 50 MHz, 100 MHz |
| Power Supply and Consumption | AC220V ± 10%; ≤ 15 W; DC12V (7Ah); ≤ 20 W |
| Standby Time | Continuous operation for approximately 6 hours |
| Ambient Temperature | 14 °F to 104 °F (-10 °C to 40 °C). |
| Temperature Range | -4 °F to 104 °F (-20 °C to 40 °C). |
| Relative Humidity | ≤ 80% |
| Overall Dimensions | 7.09 in × 11.81 in × 15.75 in (18 cm × 30 cm × 40 cm) |
| Host Weight | 13.67 lbs (6.2 kg) |
