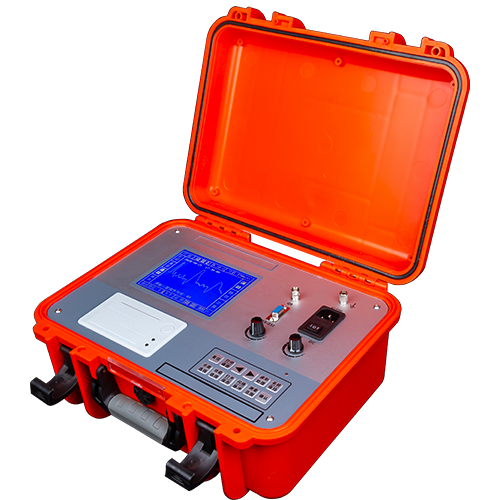

Cable Fault Pre Locator with Flexible Test Condition – Amuse Tech Solutions
Advanced cable continuity tester with high-frequency sampling, precise measurements, and versatile testing capabilities for reliable fault detection.
Description
Features
- High-Frequency Signal Sampling
- Precise Measurement Accuracy
- Long-Range Fault Detection
- Flexible Test Conditions
- Robust Power Supply Options
Technical Specifications
| Sampling Frequency | 100 MHz |
| Low Voltage Pulse Amplitude | 35 V |
| Pulse Width | 0.2 µS / 2 µS |
| Minimum Resolution | 3.28 ft (1.0 m) |
| Test Blind Area | ≤ 114.83 ft (35 m) |
| Test Range | ≥ 19,8839 mi (32 km) |
| Measurement Error | ≤ ± (0.5% × L + 3.28 ft (1m)) |
| Power Supply | AC 110 V to 240 V, 50 Hz / 60 Hz |
| Working Conditions | Ambient Temperature: -4 °F to 149 °F (-20 ℃ to 65 ℃); Relative Humidity: ≤ 90% |
| Volume | 14.09 in x 15.12 in x 6.61 in (35.8 cm x 38.4 cm x 16.8 cm) |
| Weight | 10.8 lbs (4.9 kg) |
