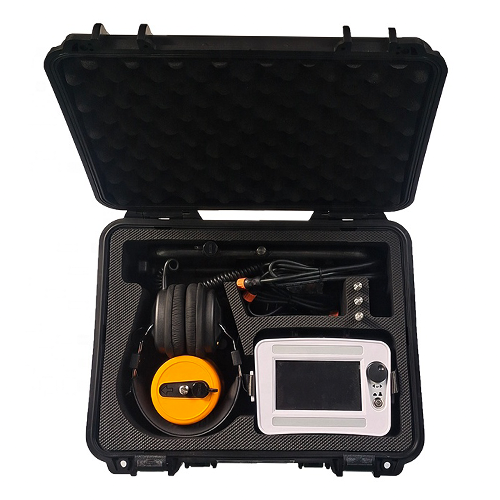

Cable Fault Pinpointing with Adjustable Gain Settings – Amuse Tech Solutions
Efficient cable continuity tester with advanced noise reduction, accurate positioning, and a user-friendly touch control interface.
Description
Features
- Advanced Noise Reduction Technology
- High-Accuracy Positioning System
- Bright Touchscreen Control Panel
- Adjustable Gain Settings
- Long Battery Standby Time
Technical Specifications
| Full Pass | 100 Hz to 1600 Hz |
| Low Pass | 100 Hz to 300 Hz |
| High Pass | 160 Hz to 1600 Hz |
| Band Pass | 200 Hz to 600 Hz |
| Channel Gain | 8 adjustable |
| Magnetic Channel Gain | 8 adjustable |
| Step Voltage Gain | 8 adjustable |
| Output Gain | 16 adjustable (0Â dB to 12dB) |
| Output Impedance | 350 Ω |
| Acoustic Magnetic Positioning | Less than 0.66ft (0.2m) |
| Step Voltage Positioning | Less than 1.64ft (0.5m) |
| Path Discrimination | Less than 1.64ft (0.5m) |
| Noise Reduction | BNR background noise reduction and mute noise reduction |

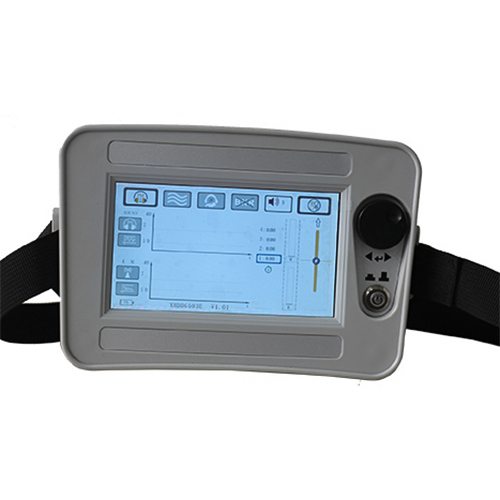

| Display And Control | 5-in (12.7cm) bright touch screen |
| Power Supply | 4 × 18650 standard lithium batteries |
| Standby Time | More than 8 hours |
| Temperature Range | -13 °F to 149 °F (-25 °C to 65 °C) |
| Relative Humidity | ≤ 90% |
| Dimensions (L × W × H) | 16.85 in × 13.78 in × 9.06 in (42.8 cm × 35 cm × 23 cm) |
| Weight | 15.43 lbs (7kg) |
