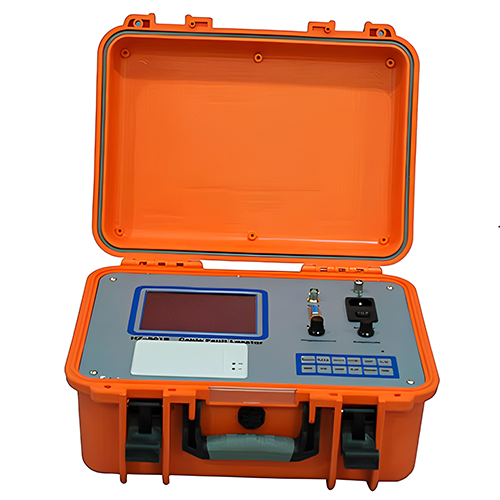

Cable Fault Locator with Precise Measurement Accuracy – Amuse Tech Solutions
This advanced cable tester provides precise fault detection with adjustable pulse width and high accuracy for efficient cable diagnostics.
Description
Features
- High Voltage Capability
- Precise Measurement Accuracy
- Adjustable Pulse Width
- Extended Range Detection
Technical Specifications
| Pulse Amplitude | 100 Vpp |
| Pulse Width | 0.1 μS to 2 μS |
| Measuring Distance | 49,2126 ft to 18.64 mi (15 m to 30 km) |
| Measurement Error | Rough: ±32.81 ft (±10 m), Coarse: ±1% |
| Power Supply Mode | Built-in 12 V / 10 Ah DC (4 hours) or AC 220 V 50 Hz |
| Magnification | 500,000 times |
| Working Voltage | ±9 V ±20% |
| Quiescent Current | <10 mA |
| Receive Signal | Vibration and Magnetic Field Signals |
| Output Impedance | 350 Ω |
| Positioning Accuracy | 0.66 ft (0.2 m) |
| Impact High Voltage | 0 kV to 35kV |
| High Voltage Partial Pressure | Voltage Accuracy of 1.5 |
| Built-in Capacitor | 4 μF |
| Discharge Power | 2450 J |
| Impact Time | About 5 seconds, Automatic or Manual |
| Impact Power | 2 KVA |
| Working Power Supply | AC 220 V ±10% 50 Hz ±2 Hz |
| Ambient Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Volume (L x W x H) | 22.83 in x 14.57 in x 42.52 in (58 cm x 37 cm x 108 cm) |
| Weight | 275.57 lbs (125 kg) |
