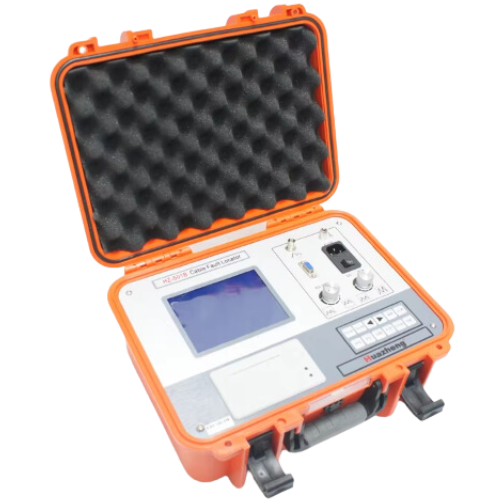

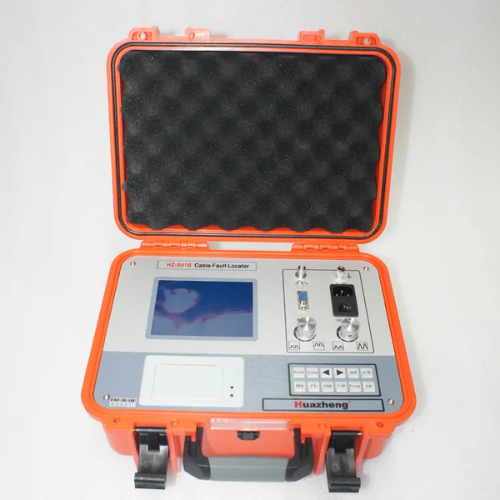

Cable Fault Locator with High Precision Measurements – Amuse Tech Solutions
Cable Continuity Tester with High Precision, Multiple Test Methods, Built-in Storage, Micro Printer, and Real-Time Waveform Display.
Description
Features
- High Precision Measurements
- Real-Time Waveform Display
- Built-In Micro Printer
- Multiple Test Methods
Technical Specifications
| Display | Industrial Grade 5-Inch LCD |
| Measurement Functions | Distance, Speed, Resistance |
| Testing Method | Flashover Sampling, Low-Impulse Method |
| Measuring Distance | Max: 37.3 mi (60 km); Min: 49 ft (15 m) |
| Pre-Locating Accuracy | Absolute: ±32.8 ft (±10 m); Relative: ±1% |
| Power Supply | Built-in DC 2.6 V / 10.4 Ah, External AC 220 V 50 Hz |
| Main Features | SCM Centralized Control, Anti-Interference |
| Battery Type | Nickel-Hydrogen Battery |
| Printer | Built-in Micro Printer for Test Waveforms |
| Sampling | Continuous, Never Lose Discharge Waveforms |
| Storage | Store up to 10 Waveforms |
| Temperature Range | -13 °F to 149 °F (-25 °C to 65 °C) |
| Monitor Viewing Angle | >160° |
| Dimensions | 16.9 in × 14.2 in × 9.1 in (43 cm × 36 cm × 23 cm) |
| Weight | 17.6 lbs (8 kg) |
