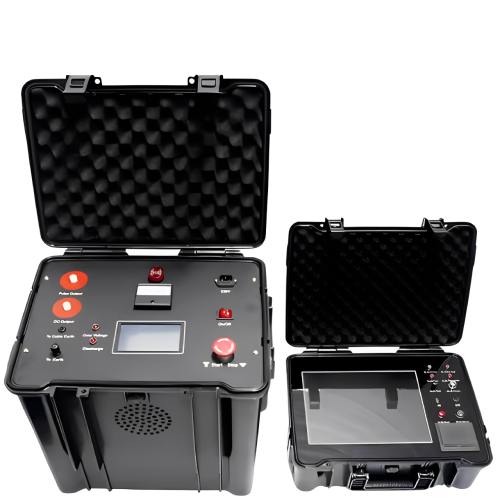

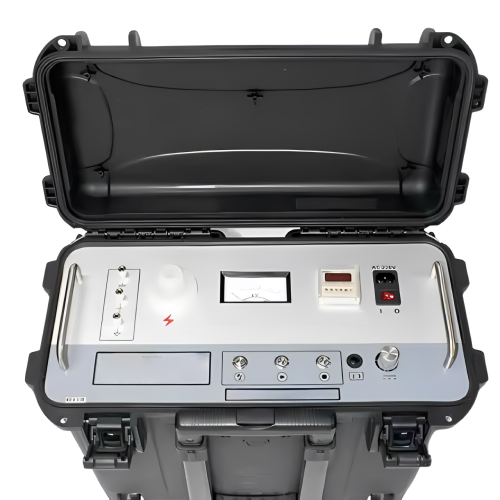

Cable Fault Location with Accurate Distance Measurement – Amuse Tech Solutions
Industrial-grade cable continuity tester featuring advanced measurement functions, built-in micro printer, accurate sampling, and robust protection.
Description
Features
- Accurate Distance Measurement
- Built-In Micro Printer
- Durable Protective Chassis
- Advanced Sampling Functions
Technical Specifications
| Screen | Industrial-grade 5.7-inch two-color display |
| Control | Single-chip microcomputer, push-button operation |
| Anti-Interference | Strong anti-interference ability |
| Functions | Distance, speed, and resistance measurement |
| Printer | Integrated micro printer for test waveforms and reports |
| Sampling Method | Low voltage pulse and flashover sampling |
| Sampling Frequency | 100 MHz |
| Pulse Amplitude | 35 V |
| Pulse Width | 0.2 µs to 2 µs |
| Minimum Resolution | 3.28 ft (1.0 m) |
| Dead Zone | ≤114.8 ft (35 m) |
| Distance Detection Range | ≥19.88 mi (32 km) |
| Measurement Error | ≤±(0.5% × L + 3.28 ft (1 m)) |
| Communication Interface | RS232 |
| Power Supply | Charge AC 110 V to 240 V, 50 Hz / 60 Hz; Built-in 5200 mAh battery |
| Protection Level | IP54 |
| Working Condition | -4 °F to 149 °F (-20 °C to 65 °C), RH ≤90% |
| Size | 14.1 in × 11.2 in × 6.6 in (35.8 cm × 28.4 cm × 16.8 cm) |
| Weight | 10.14 lbs (4.6 kg) |
