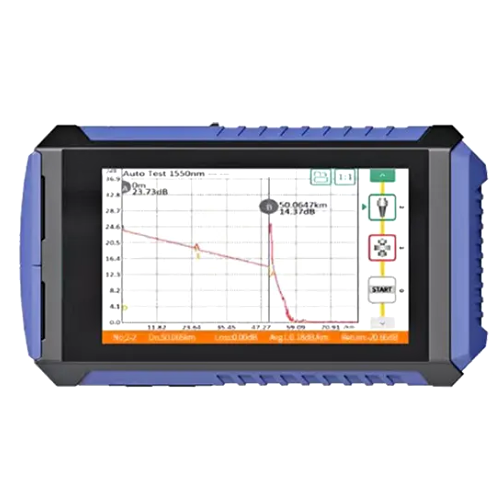

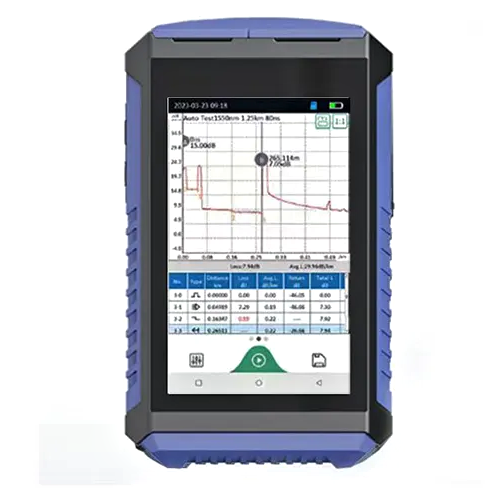

Cable Fault Finder Tester with Live Testing Compatibility – Amuse Tech Solutions
Compact OTDR for FTTH with high dynamic range, long test distance, high resolution, user-friendly interface, and huge storage capacity.
Description
Features
- Accurate XGPON power measurement
- Live testing compatibility
- RJ45 sequence tracking
- Touchscreen for smooth control
Technical Specifications
| Event Blind Zone | 4.92 ft (1.5 m) |
| ATT Blind Zone | 26.24 ft (8 m) |
| Test Range | 328 ft, 984 ft, 1.64 ft, 0.77 mi, 1.55 mi, 3.10 mi, 6.21 mi, 12.42 mi, 24.85 mi, 49.71 mi, 62.14 mi (100 m/300 m/500 m/1.25 km/2.5 km/5 km/10 km/20 km/40 km/80km/100 km) |
| Pulse Width | 5 ns/10 ns/20 ns/30 ns/50 ns/80 ns/100 ns/200 ns/300 ns/500 ns/800 ns/1 μs/2 μs/3 μs/5 μs/8 μs/10 μs/20 μs |
| Ranging Accuracy | ± 3.28 ft (1 m)+Sample interval+0.005％×Test distance） |
| Linearity | ± 0.05 dB/dB |
| Max Sample Points | ≥20000 |
| Max Sample Resolution | ≤ 0.098 ft (0.03 m) |
| Loss Resolution | 0.01 dB |
| Loss Threshold | 0.20 dB |
| Range Resolution | 0.032 ft (0.01 m) |
| Refractive Index | 1.00000 to 2.00000 |
| File Format | SOR standard file format |
| Connector | SC/UPC or SC/APC |
| Loss Analysis | 4-point method /5-point method |
| Laser Safety Level | Class II |
| Standard Configuration | OTDR, Event Map, OPM, LS, VFL, RJ45 cable tracker (Including Cable Tracker), RJ45 Cable Sequence, Flashlight |
