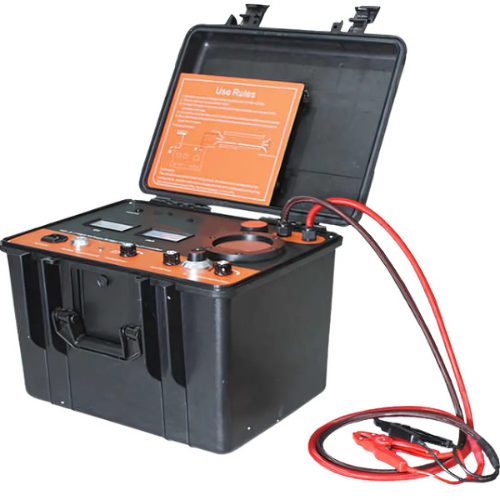

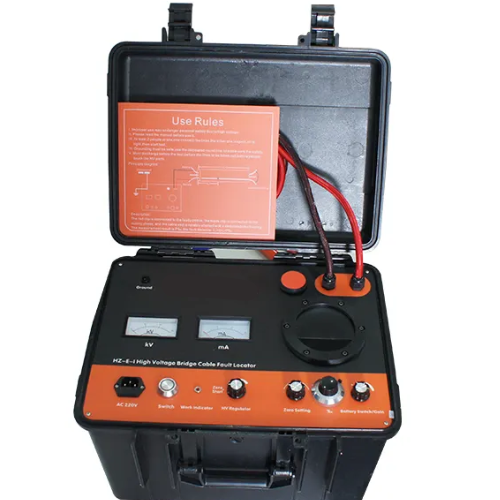

Cable Fault Bridge with Adjustable High Voltage Output – Amuse Tech Solutions
Continuity tester with adjustable voltage, high precision measurement, and burn-through functions for reliable cable fault detection.
Description
Features
- Adjustable High Voltage Output
- Precise Measurement Accuracy
- Robust Anti-Interference Capability
- Compact And Lightweight Design
- Advanced Burn-Through Features
Technical Specifications
| Test Voltage | 0 kV to 15 kV, Negative High Pressure, Continuously Adjustable |
| Maximum Current | 30 mA |
| Test Ratio Accuracy | ± (0.2% x L ± 1) meters |
| Burn-Through Output Voltage | 0 kV to 15 kV, Continuously Adjustable |
| Burn-Through Output Current | 30 mA |
| Power Source | AC 220 V ± 10% |
| Anti-Interference Ability | Greater than 100 VAC |
| Dimensions | 18.8 in x 14.2 in x 12.4 in (47.8 cm x 36 cm x 31.6 cm) |
| Weight | ≤ 26.5 lbs (12 kg) |
