Cable Continuity Tester with Direct Connection Output – Amuse Tech Solutions
Efficient cable continuity tester with direct and clamp outputs, advanced LCD display, and battery power for precise cable identification.
Description
Features
- Direct Connection Output
- Adjustable Output Power
- High-Accuracy Measurement
- Flexible Clamp Input
- Advanced LCD Display
Technical Specifications

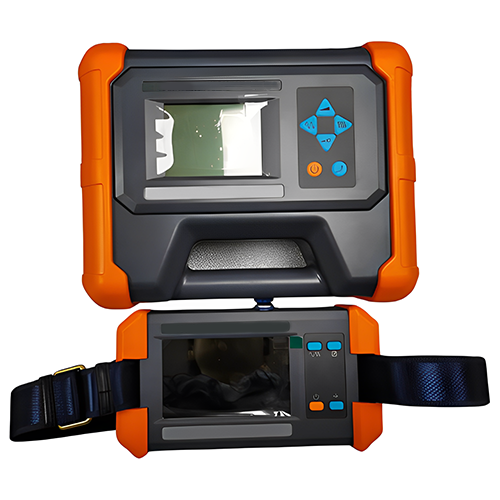

| Transmitter Output | Direct Connection Output, Clamp Coupling Output |
| Output Frequency | 640 Hz (complex frequency), 1280 Hz (complex frequency) |
| Output Power | Max. 10 W, 10 Levels Adjustable, Auto Impedance Matching |
| Direct Connection Voltage | Max. 150 Vpp |
| Protection | Overload and Short Circuit Protection |
| Transmitter HMI | 320 x 240 LCD |
| Power Supply (Transmitter) | 4 x 18650 Li-on Batteries, 7.4 V (6.8 Ah) |

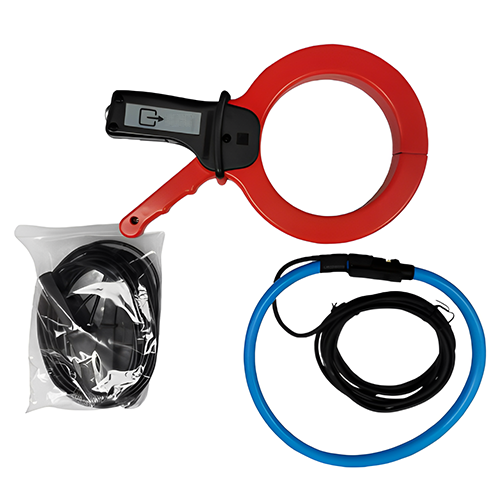

| Receiver Input | Soft Flexible Clamp |
| Receiving Frequency | Active: 640 Hz, 1280 Hz; Power: 50 Hz / 60 Hz |
| Cable Identification Mode | Soft Flexible Clamp |
| Power Frequencies Measurement | Range AC 1 A to 1000 A, Accuracy ±3% |
| Receiver HMI | 800 x 480 LCD, Size 4.8 in x 3.0 in (12.1 cm x7.6 cm) |
| Power Supply (Receiver) | 2 x 18650 Li-on Batteries, 3.7 V (6.8 Ah) |
| Charger Input | AC 100 V to 240 V, 50 Hz / 60 Hz |
| Charger Output | Transmitter: DC 8.4 V, 2 A; Receiver: DC 5 V, 2 A |
| Temperature Range | 14 °F to 104 °F (-10 °C to 40 °C) |
| Humidity Range | 5% to 90% |
| Elevation Limit | Below 14,764 ft (4,500 m) |
| Certifications | CE, RoHS |
| Application | Dead and Running Cable Identification |
| Transmitter Dimensions | 11.0 in x 8.7 in x 3.5 in (28 cm x 22 cm x 9 cm) |
| Receiver Dimensions | 8.7 in x 4.9 in x 2.2 in (22 cm x 12.5 cm x
5.5 cm) |
| Weight (Transmitter) | 5.1 lbs (2.3 kg) |
| Weight (Receiver) | 2.0 lbs (0.9 kg) |
