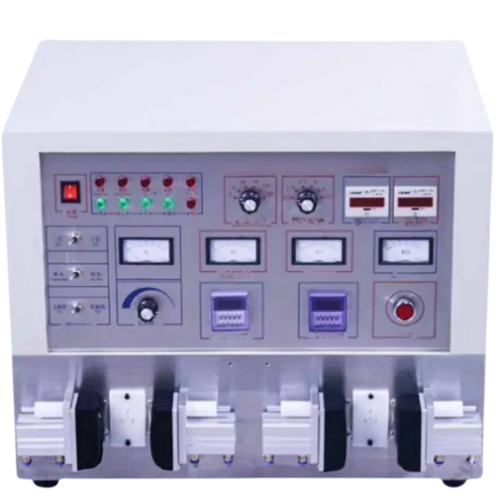

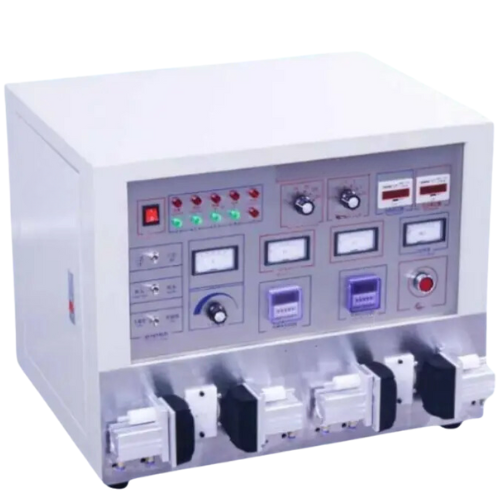

Cable Continuity Inversion with High Voltage Output Control – Amuse Tech Solutions
Advanced continuity tester with adjustable voltage, precision leak detection, automatic defect handling, and user-friendly diagnostic features.
Description
Features
- High-voltage output control
- Precise leakage detection
- Automatic defect handling
- Real-time status alerts
- Robust safety features
Technical Specifications
| Polarity | Break over, short circuit, open circuit, dislocation |
| Leakage Current | Setting Range: 0.5 mA, 1.0 mA, 2.0 mA, 3.0 mA, 5.0 mA, 10 mA |
| Internal High-Voltage Output | 0 V to 5000 V Adjustable |
| External High-Voltage Output | 0 V to 5000 V Adjustable |
| Operating Voltage | 220 Vac, 12 A, 50 Hz / 60 Hz |
| Voltmeter Range | 0 V to 5000 V |
| Voltmeter Resolution | 0.5 level |
| Insulation Voltage | Output Voltage: DC500V |
| Insulation Resistance Range | 2 MΩ, 7 MΩ, 20 MΩ, 50 MΩ, 100 MΩ, 200 MΩ |
| Insulation Resolution | 0.5 level |
| Voltage Withstand Time | Timing Range: 0.1 to 99.9 seconds Minimum time for item measuring: 0.3 seconds |
| Wire Sensitivity | > 10 pF |
| Barometric Pressure | < 56.88 psi (< 4 kgf/cm²) |
| OK Product Handling | Automatic printing, push out, counting, indicator n |
| NG Product Handling | Automatic locking, counting, indicator ON, buzzer alert |
| Other Functions | Automatic cutting of defective products, voice prompts, light alarms |
| Safety Features | Electric leakage, short circuit, overheating protection |
| Size | 28.74 in x 20.87 in x 19.69 in (73 cm x 53 cm x 50 cm) |
| Weight | 176.37 lbs (80 kg) |
