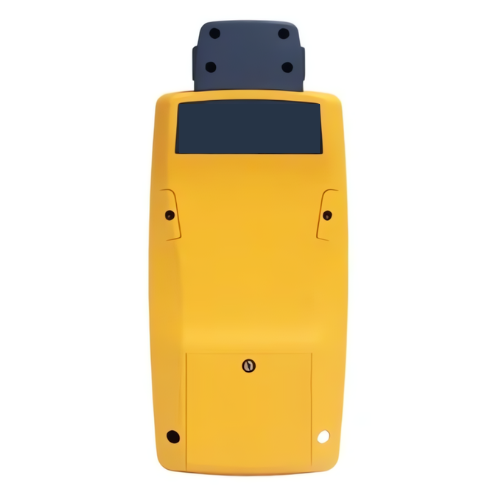

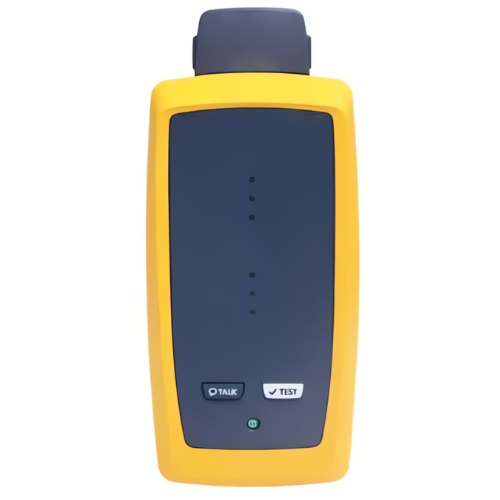

Cable Analyzer with Fast Testing for All Standards – Amuse Tech Solutions
Cable Analyzer or Fast copper cable certifier for twisted pair cabling with Wi-Fi, fiber optic loss, OTDR testing, and fiber end-face inspection.
Description
Features
- Modular copper and fiber certification.
- Fast testing for all standards.
- ProjX job management system.
- Taptive intuitive user interface.
Technical Specifications
| Case | High impact plastic with show absorbing overmold |
| Calibration | Service center calibration period is 1 year |
| Power | Main unit and remote: Lithium ion battery pack, 7.2 V, Typical battery life: 8 hours, Charge time: Tester off: 4 hours to charge from 10 to 90% capacity |
| Cable Types | Shielded and unshielded pair LAN cabling: TIA CAT 3, 4, 5, 5e, 6, 6A, 8: 100 Ω ISO/IEC Class C, D, E, EA, F, FA and I/II: 100 and 120 Ω |
| Display | 5.69 in (14.47 cm) LCD display with a projected capacitance touchscreen |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Dimensions | Main Versiv unit with DSX module and battery installed: 2.625 in x 5.24 in x 10.99 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Weight | Main Versiv unit with DSX module and battery installed: 2.82 lb (1.28 kg) |
